Coupling With Land Surface Model Pyhelp#
[2]:
# -*- coding: utf-8 -*-
"""
* Copyright (c) 2023 Alexandre Gauvain, Ronan Abhervé, Jean-Raynald de Dreuzy
*
* This program and the accompanying materials are made available under the
* terms of the Eclipse Public License 2.0 which is available at
* http://www.eclipse.org/legal/epl-2.0, or the Apache License, Version 2.0
* which is available at https://www.apache.org/licenses/LICENSE-2.0.
*
* SPDX-License-Identifier: EPL-2.0 OR Apache-2.0
"""
[2]:
'\n * Copyright (c) 2023 Alexandre Gauvain, Ronan Abhervé, Jean-Raynald de Dreuzy\n *\n * This program and the accompanying materials are made available under the\n * terms of the Eclipse Public License 2.0 which is available at\n * http://www.eclipse.org/legal/epl-2.0, or the Apache License, Version 2.0\n * which is available at https://www.apache.org/licenses/LICENSE-2.0.\n *\n * SPDX-License-Identifier: EPL-2.0 OR Apache-2.0\n'
[3]:
# Libraries installed by default
import sys
import os
import numpy as np
import pandas as pd
import geopandas as gpd
import rasterio
import xarray as xr
import rioxarray as rxr
import pickle
import matplotlib as mpl
import matplotlib.pyplot as plt
from IPython import get_ipython
get_ipython().run_line_magic('matplotlib', 'inline')
import imageio
import whitebox
wbt = whitebox.WhiteboxTools()
wbt.verbose = False
import glob
[4]:
"""
# Import HydroModPy modules
from os.path import dirname, abspath
# DIR = dirname(dirname(dirname(dirname(abspath(__file__)))))
DIR = 'C:/Users/rabherve/GitHub/HydroModPy-dev/'
sys.path.append(DIR)
"""
# Import HydroModPy modules
from os.path import dirname, abspath
DIR = dirname(dirname(dirname(abspath(__file__))))
sys.path.append(DIR)
sys.path.append(os.path.join(DIR, "src"))
# from os.path import dirname, abspath
# root_dir = '/home/bb/Documents/01_Git_Repository/01-HydroModPy-dev'
# sys.path.append(root_dir)
[5]:
import hydromodpy
import importlib
# Import HydroModPy modules
from hydromodpy import watershed_root
from hydromodpy.watershed import climatic, geographic, geology, hydraulic, hydrography, hydrometry, intermittency, oceanic, piezometry, subbasin
from hydromodpy.modeling import modflow, modpath, timeseries
from hydromodpy.display import visualization_watershed, visualization_results, export_vtuvtk
from hydromodpy.tools import toolbox, folder_root
fontprop = toolbox.plot_params(8,15,18,20) # small, medium, interm, large
from hydromodpy.modeling import modflow, modpath, timeseries
from hydromodpy.pyhelp.pyhelp_netcdf import preprocessing_pyhelp
[6]:
data_path = os.path.join(DIR, "examples", "10_coupling_with_land_surface_model_pyhelp", "data")
# The folder out_path is created in the example_path root directory:
out_path = os.path.join(DIR, "examples", "results")
print('The results of the example will be saved here :', out_path)
The results of the example will be saved here : /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results
[7]:
# cell_size = 100
# wbt.resample(os.path.join(data_path, "ursa_RS3_rot0.tif"),
# os.path.join(data_path, "ursa_RS3_rot0_"+str(cell_size)+".tif"),
# cell_size)
# dem_path = os.path.join(data_path, "ursa_RS3_rot0_"+str(cell_size)+".tif")
dem_path_pyhelp = os.path.join(data_path, "ursa_RS3_rot0_250.tif")
dem_path = os.path.join(data_path, "ursa_RS3_rot0.tif")
watershed_name = "Example_10_Urse"
# watershed_name ='Strengbach'
from_lib = None # os.path.join(root_dir,'watershed_library.csv')
from_dem = None # [path, cell size]
from_shp = [os.path.join(data_path, "watershed_urse_EPSG2056.shp"), 10]
# from_xyv = [327816.965, 6777886.670, 150, 20 , 'EPSG:2154'] # [x, y, snap distance, buffer size, crs proj]
from_xyv = [2798418.619, 1133789.585, 500, 20, 'EPSG:2056']
bottom_path = None # path
save_object = True
[ ]:
print('##### '+watershed_name.upper()+' #####')
# load = True
load = False
BV = watershed_root.Watershed(dem_path=dem_path,
out_path=out_path,
load=load,
watershed_name=watershed_name,
from_lib=from_lib, # os.path.join(root_dir,'watershed_library.csv')
from_dem=from_dem, # [path, cell size]
from_shp=from_shp, # [path, buffer size]
from_xyv=from_xyv, # [x, y, snap distance, buffer size]
bottom_path=bottom_path, # path
save_object=save_object)
# Paths generated automatically but necessary for plots
stable_folder = os.path.join(out_path, watershed_name, 'results_stable') # necessary for plots
simulations_folder = os.path.join(out_path, watershed_name, 'results_simulations')
calibration_folder = os.path.join(out_path, watershed_name, 'results_calibration')
[INFO] __ __ __ __ ____ ________
[INFO] / / / / / / / \/ / / / __ /
[INFO] / /_/ /_ ______/ /________ / /___ ____/ / /_/ /_ __
[INFO] / __ / / / / __ / ___/ __ \/ /\,-/ / __ \/ __ / ____/ / / /
[INFO] / / / / /_/ / /_/ / / / /_/ / / / / /_/ / /_/ / / / /_/ /
[INFO] /_/ /_/\__, /_____/_/ \____/_/ /_/\____/_____/_/____\__, /
[INFO] /____/ Hydrological Modelling in Python /_____________/
[INFO]
[INFO] Initializing watershed object from scratch as requested
[INFO] Extracting geographic data for model area
##### EXAMPLE_10_URSE #####
[ ]:
KB4_loc = [2796960.102,1133328.361] #???

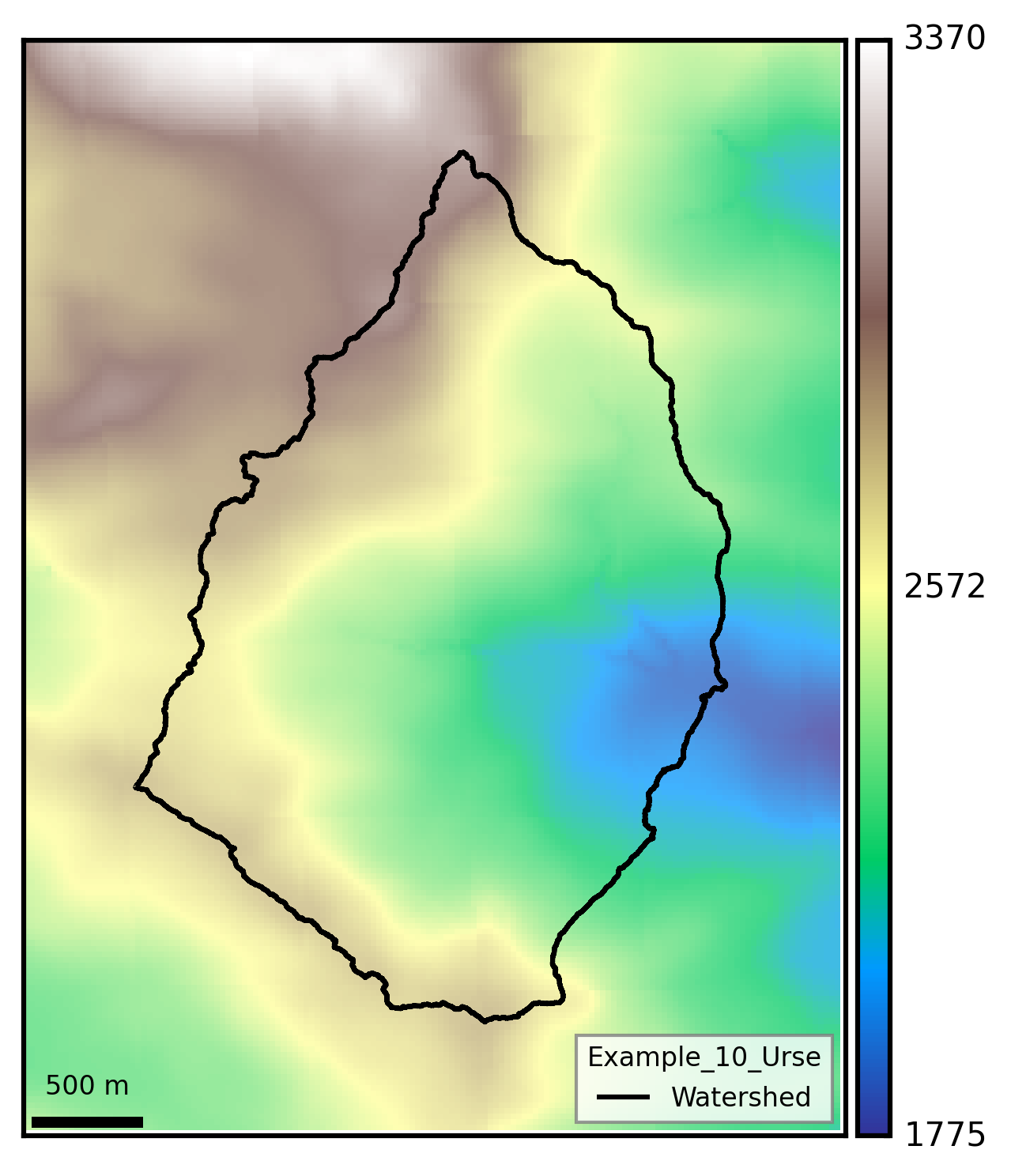

visualization_watershed.watershed_dem(BV)
[ ]:
pyhelp_workdir = os.path.join(out_path, watershed_name, "results_pyhelp")
era5_folder = os.path.join(data_path)
### If already completed grid:
grid_base_csv = data_path+"/"+"_init_input_grid_base1/"+"input_grid_base1.csv"
ready_csvs = [
os.path.join(era5_folder, "precip_input_data.csv"),
os.path.join(era5_folder, "airtemp_input_data.csv"),
os.path.join(era5_folder, "solrad_input_data.csv")
]
[ ]:
k_values = [4.28e-8 * 3600 * 24] #â—˜ 0.0037 m/day
list_of_sims = []
option = '1'
for k in k_values[:]:
k = round(k, 5)
grid_kwargs = dict(
growth_start=140,
growth_end=280,
wind=2.5,
hum1=60, hum2=65, hum3=70, hum4=70,
LAI=2.4,
EZD=44.5,
CN=55,
nlayer=1,
lay_type1=1,
thick1=100,
poro1=0.45,
fc1=0.23,
wp1=0.116,
ksat1=k,
dist_dr1=50,
slope1=35
)
# cid Unique cell ID
# lat_dd Decimal degrees Latitude of the cell centroid
# lon_dd Decimal degrees Longitude of the cell centroid
# wind km/h Average annual wind speed
# hum1 % Average quarterly relative humidity (Jan to Mar)
# hum2 % Average quarterly relative humidity (Apr to Jun)
# hum3 % Average quarterly relative humidity (Jul to Sep)
# hum4 % Average quarterly relative humidity (Oct to Dec)
# growth_start julian day First day of the growing season
# growth_end julian day Last day of the growing season
# LAI – Maximum leaf area index
# EZD cm Evaporative zone depth
# CN – Curve Number
# nlayer – Number of hydrostratigraphic layers at cell cid
# lay_type{i} – Type of HELP layer of the ith soil layer
# thick{i} cm Thickness of the ith soil layer
# poro{i} m3/m3 Total porosity of the ith soil layer
# fc{i} m3/m3 Field capacity of the ith soil layer
# wp{i} m3/m3 Wilting point of the ith soil layer
# ksat cm/s Saturated hydraulic conductivity of the ith soil layer
# dist_dr m Distance to discharge
# slope % Average slope
# run – Identify cells to be run with the HELP model
# context – Identify cells by context:
# 0 - Water cell
# 1 - Normal cell
# 2 - Stream edge with superficial hypodermic runoff
# 3 - River edge with deep hypodermic runoff
# 4 - Urban cell
# 5 - Cell not mapped
if option == '1':
#---- Input climatic ready - Input grid updated:
nc = preprocessing_pyhelp(
workdir = os.path.join(pyhelp_workdir, f"_sim_{k}"),
outpath = os.path.join(pyhelp_workdir, f"_sim_{k}"),
ready_csvs = ready_csvs,
grid_kwargs = grid_kwargs,
dem = dem_path_pyhelp,
shapefile = from_shp[0],
)
# print("NetCDF :", nc)
if option == '2':
#---- Input climatic ready - Input grid ready:
nc = preprocessing_pyhelp(
workdir = pyhelp_workdir,
outpath = simulations_folder,
grid_csv = grid_base_csv,
ready_csvs = ready_csvs,
)
# print("NetCDF :", nc)
"""
if option == '3':
#---- Input climatic updated - Input grid updated:
nc = preprocessing_pyhelp(
workdir = pyhelp_workdir,
outpath = simulations_folder,
dem = dem_path_pyhelp,
era5_folder = era5_folder,
grid_kwargs = grid_kwargs,
conda_env = "pyhelp_env",
)
# print("NetCDF :", nc)
"""
list_of_sims.append(f"_sim_{k}")
[INFO] Updating PyHELP grid geometry before run
[INFO] Updated grid saved to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/input_grid_base1.csv
[INFO] Executing pyHELP CLI workflow
[INFO] Launching help_example.py workflow: /home/bb/miniforge3/envs/testpip313/bin/python /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/hydromodpy/pyhelp/help_example.py --workdir /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037
[INFO] pyhelp.bilan module resolved at /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/hydromodpy/pyhelp/bilan.py
[INFO] Loading grid data from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/input_grid_base1.csv
[INFO] Grid data loaded successfully from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/input_grid_base1.csv
[INFO] Loading precipitation inputs from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/precip_input_data.csv
[INFO] Loading air temperature inputs from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/airtemp_input_data.csv
[INFO] Loading solar radiation inputs from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/solrad_input_data.csv
[INFO] Weather input datasets loaded successfully
[INFO] Clearing HELP input cache in /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/help_input_files
[INFO] D10 and D11 data formatting completed for 1600 cells in 0.11 sec
[INFO] D10 files created in 0.05 sec
[INFO] D11 files created in 0.04 sec
[INFO] Persisting D10/D11 connectivity tables
[INFO] Generating D4 HELP input files for precip
[INFO] Generating D7 HELP input files for airtemp
[INFO] Generating D13 HELP input files for solrad
[INFO] Updating HELP input connectivity tables
[INFO] HELP simulation completed for 1600 cells in 1.40 sec
[INFO] Post-processed HELP outputs for 1600 cells
[INFO] Writing water budget dataset to help_example.out
[INFO] Water budget dataset written successfully
[INFO] Exporting annual averages to help_example_yearly.csv
[INFO] Annual averages exported successfully
[INFO] Calculating surface water budget for 0 cells
[INFO] Surface water budget computed in 0.00 sec
[INFO] PyHELP simulation complete
[INFO] Daily mean output generated at /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/help_example_daily_mean.csv
[INFO] Generating PyHELP NetCDF cubes from daily outputs
[INFO] NetCDF grid export complete: /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_pyhelp/_sim_0.0037/_pyhelp_outputs_grid.nc
[12]:
name_sim = list_of_sims[0]
csv_path = pyhelp_workdir + '/' + name_sim + "/help_example_daily_mean.csv"
df = pd.read_csv(csv_path)
df = df.rename(columns={df.columns[0]: "time"})
formatted_csv_path = pyhelp_workdir + '/' + name_sim + "/help_example_daily_mean_formatted.csv"
df.to_csv(formatted_csv_path, index=False)
[ ]:
nc_path = pyhelp_workdir + '/' + name_sim + "/_pyhelp_outputs_grid.nc"
dem_path = stable_folder + "/geographic/watershed_box_buff_dem.tif"
ds = xr.open_dataset(nc_path)
dem = rxr.open_rasterio(dem_path)
R = ds["rechg"]
R = R.rio.write_crs(dem.rio.crs)
Rt = R.rio.reproject_match(dem, nodata=0.0)
cube = Rt.values / 1000
recharge_dict = {i: cube[i] for i in range(cube.shape[0])}
[14]:
rec_path = pyhelp_workdir + '/' + name_sim + "/help_example_daily_mean_formatted.csv"
rec_data = pd.read_csv(rec_path, sep=',')
rec_data = rec_data[['time','rechg']]
rec_mean = rec_data.groupby('time', as_index=False).mean()
rec_mean['time'] = pd.to_datetime(rec_mean['time'])
rec_mean = rec_mean.set_index(['time'])
# rec_mean[rec_mean==0] = np.nan
years = rec_mean.index.year.unique()
# Calculer la moyenne annuelle
rec_annual = rec_mean.resample('Y').sum()
# Extraire les années pour l'axe X
years = rec_annual.index.year
rec_annual.index = years # Remplacer l'index par les années pures
# Tracé

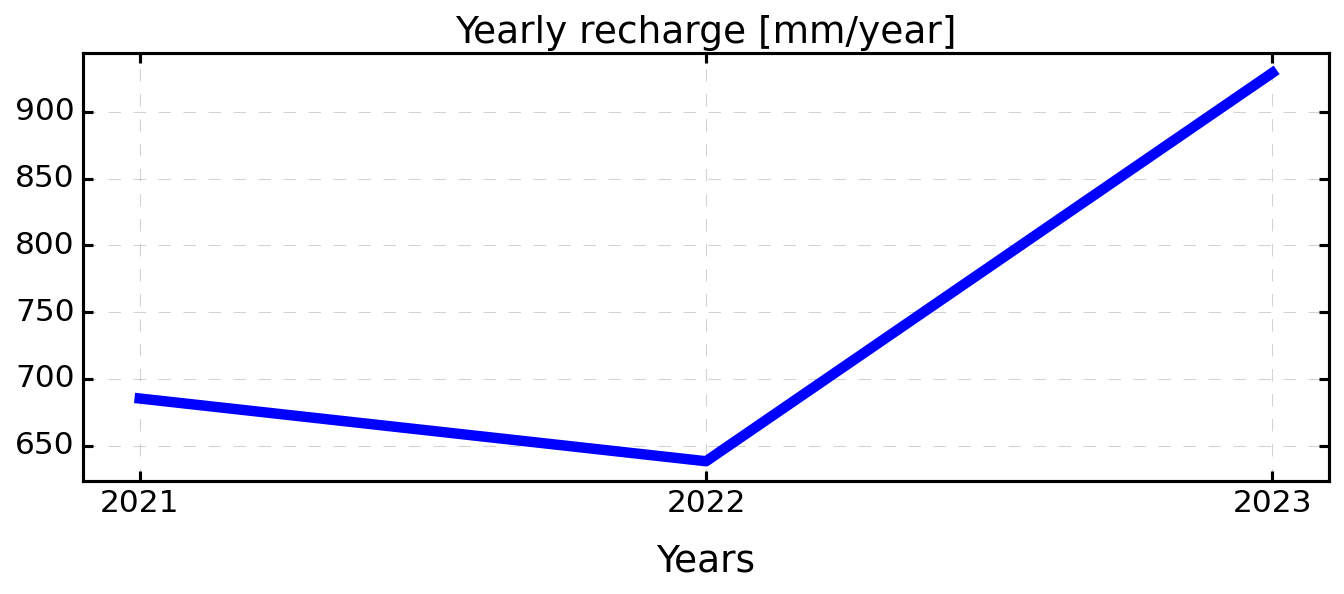

plt.figure(figsize=(9, 4), dpi=150)
plt.plot(rec_annual.index, rec_annual['rechg'], color='blue', lw=5)
plt.xlabel('Years')
# plt.yscale('log') # Optionnel selon échelle
plt.grid(True, which='both', linestyle='--', alpha=0.5)
plt.title('Yearly recharge [mm/year]')
# Mettre les années en xticks proprement
plt.xticks(ticks=years, labels=[str(y) for y in years])
plt.tight_layout()
plt.show()
[ ]:
rec_data = pd.read_csv(rec_path, sep=',')
rec_data = rec_data[['time','rechg']]
rec_mean = rec_data.groupby('time', as_index=False).mean()
rec_mean['time'] = pd.to_datetime(rec_mean['time'])
# rec_mean = rec_mean.set_index(['time'])
# rec_mean[rec_mean==0] = np.nan
years = rec_mean['time'].dt.year.unique()
# Ajouter colonnes année et mois
rec_mean['year'] = rec_mean['time'].dt.year
rec_mean['month'] = rec_mean['time'].dt.month
# Sélectionner uniquement les colonnes numériques à sommer
cols_to_sum = ['rechg']
# Grouper par année et mois, et sommer
rec_monthly = rec_mean.groupby(['year', 'month'], as_index=False)[cols_to_sum].sum()
# Créer une colonne datetime pour l'axe x (1er jour de chaque mois)
rec_monthly['time'] = pd.to_datetime(dict(year=rec_monthly['year'], month=rec_monthly['month'], day=1))
# Mettre en index temporel
rec_monthly = rec_monthly.set_index('time')
# Liste des années
years = rec_monthly['year'].unique()
# Tracé
fig, axs = plt.subplots(3, 1, figsize=(8, 10), dpi=300, sharey=True)
axs = axs.ravel()
for i, y in enumerate(years[:]): # Saute la première année si besoin
ax = axs[i]
data_y = rec_monthly[rec_monthly['year'] == y]
ax.plot(data_y.index, data_y['rechg'], color='blue', lw=4, zorder=2)
ax.set_yscale('log')
ax.set_xlim(pd.to_datetime(f'{y}-01-01'), pd.to_datetime(f'{y}-12-31'))
ax.set_ylim(1e-2, 1e3)
ax.set_title(str(y))
month_ticks = pd.date_range(start=f'{y}-01-01', end=f'{y}-12-31', freq='MS')
ax.set_xticks(month_ticks)
ax.set_xticklabels([str(m.month) for m in month_ticks])
if i == 0:
ax.legend(loc='upper left', frameon=False, fontsize=13)

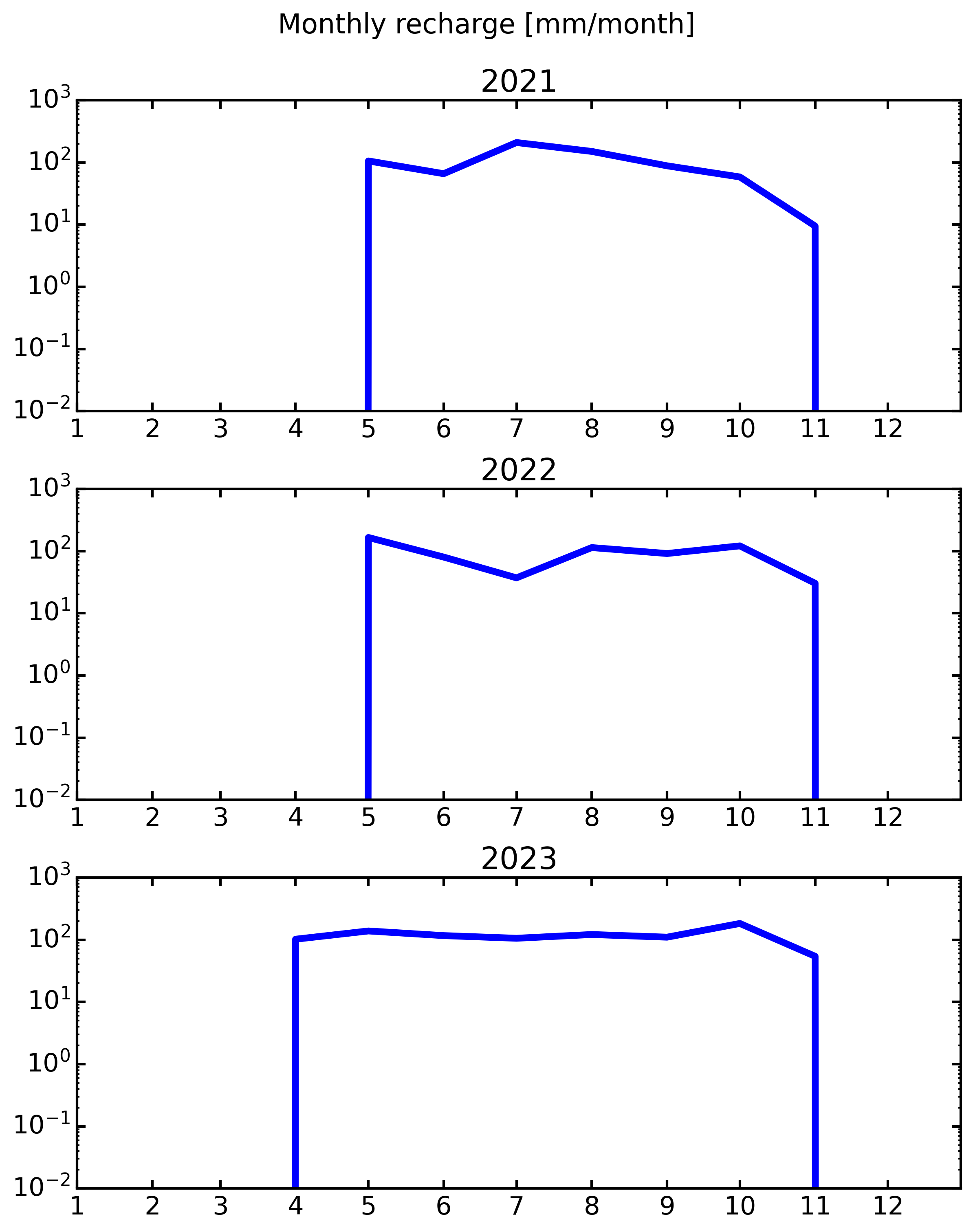

plt.suptitle('Monthly recharge [mm/month]', fontsize=16, y=1)
plt.tight_layout()
[16]:
rec_data = pd.read_csv(rec_path, sep=',')
rec_data = rec_data[['time','rechg']]
rec_mean = rec_data.groupby('time', as_index=False).mean()
rec_mean['time'] = pd.to_datetime(rec_mean['time'])
rec_mean = rec_mean.set_index(['time'])
years = rec_mean.index.year.unique()
fig, axs = plt.subplots(3, 1, figsize=(12, 12), dpi=300, sharey=True)
axs = axs.ravel()
for i, y in enumerate(years[:]):
ax = axs[i]
ax.plot(rec_mean['rechg'], color='b', lw=4, zorder=2, label='Ref')
ax.set_yscale('log')
ax.set_xlim(pd.to_datetime(f'{y}-01-01'), pd.to_datetime(f'{y}-12-31'))
ax.set_ylim(1e-2,100)
ax.set_title(str(y))
month_ticks = pd.date_range(start=f'{y}-01-01', end=f'{y}-12-31', freq='MS')
ax.set_xticks(month_ticks)
ax.set_xticklabels([str(m.month) for m in month_ticks])

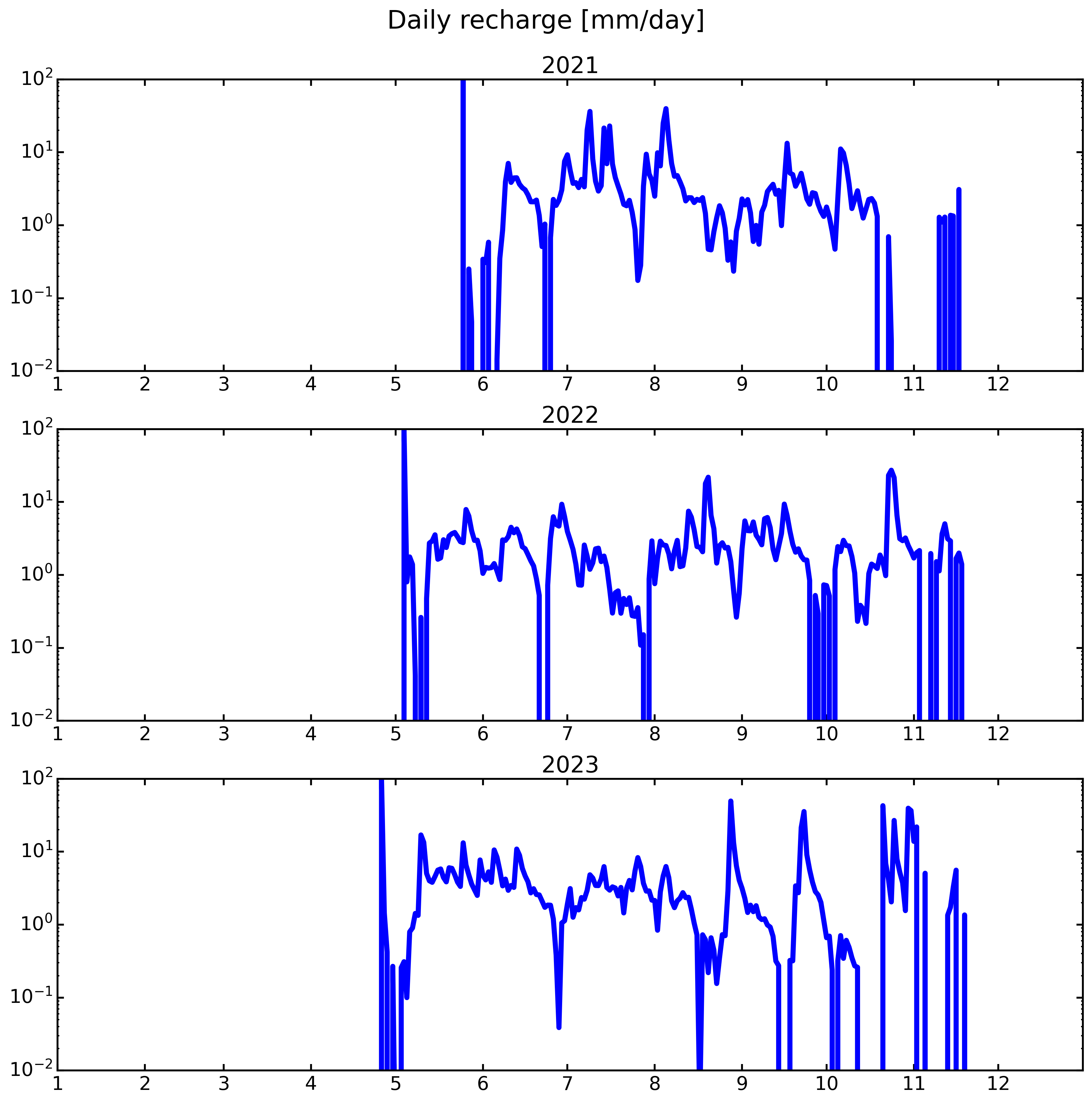

plt.suptitle('Daily recharge [mm/day]', y=1)
plt.tight_layout()
[ ]:
class MatchingStreams:
"""
Class for the calibration based on river occurency
Attributes
----------
Methods
----------
"""
def __init__(self,
watershed,
iteration_label=None,
from_calib=True):
self.geographic = watershed.geographic
self.hydrography = watershed.hydrography
if from_calib==True:
self.calibration_folder = watershed.calibration_folder
else:
self.calibration_folder = watershed.simulations_folder
self.iteration_label = iteration_label
self.watershed_shp = watershed.geographic.watershed_shp
self.watershed_fill = watershed.geographic.watershed_fill
self.watershed_direc = watershed.geographic.watershed_direc
self.prepare_files()
self.sim_to_obs()
self.obs_to_sim()
# self.get_indicator()
def prepare_files(self):
#files are necessary for whiteboxtool
self.results_folder=os.path.join(self.calibration_folder, self.iteration_label, '_postprocess')
toolbox.create_folder(self.results_folder)
# New folder results
self.dichotomy_folder = os.path.join(self.calibration_folder, self.iteration_label, '_matchingstreams')
toolbox.create_folder(self.dichotomy_folder)
# Observed buff data
self.buff_tif_obs = self.hydrography.tif_streams
# Mask observed
self.tif_obs = os.path.join(self.dichotomy_folder,'obs.tif')
toolbox.clip_tif(self.buff_tif_obs, self.watershed_shp, self.tif_obs, False)
# Obs to points
self.pt_obs = os.path.join(self.dichotomy_folder, 'obs_pt.shp')
wbt.raster_to_vector_points(self.tif_obs, self.pt_obs)
self.pt_obsf = os.path.join(self.dichotomy_folder, 'obs_ptf.shp')
wbt.raster_to_vector_points(self.tif_obs, self.pt_obsf)
# Trace downslope obs
self.obs_flow = os.path.join(self.dichotomy_folder, 'obsflow.tif')
wbt.trace_downslope_flowpaths(self.pt_obs, self.watershed_direc, self.obs_flow)
# Mask simulated
tif_sim = os.path.join(self.results_folder,'_rasters','seepage_areas_t(0).tif')
self.tif_sim = os.path.join(self.dichotomy_folder,'sim.tif')
toolbox.clip_tif(tif_sim, self.watershed_shp, self.tif_sim, False)
# Sim to points
self.pt_sim = os.path.join(self.dichotomy_folder, 'sim_pt.shp')
wbt.raster_to_vector_points(self.tif_sim, self.pt_sim)
self.pt_simf = os.path.join(self.dichotomy_folder, 'sim_ptf.shp')
wbt.raster_to_vector_points(self.tif_sim, self.pt_simf)
# Trace downslope sim
self.sim_flow = os.path.join(self.dichotomy_folder, 'simflow.tif')
wbt.trace_downslope_flowpaths(self.pt_sim, self.watershed_direc, self.sim_flow)
def sim_to_obs(self):
# Simflow to points
self.pt_sim_flow = os.path.join(self.dichotomy_folder, 'simflow.shp')
wbt.raster_to_vector_points(self.sim_flow, self.pt_sim_flow)
self.pt_sim_flowf = os.path.join(self.dichotomy_folder, 'simflowf.shp')
wbt.raster_to_vector_points(self.sim_flow, self.pt_sim_flowf)
# Distance of dem to obs
self.dist_dem_obs = os.path.join(self.dichotomy_folder, 'dist_dem_obs.tif')
wbt.downslope_distance_to_stream(self.watershed_fill, self.tif_obs, self.dist_dem_obs)
# Distance of dem to obsflow
self.dist_dem_obsflow = os.path.join(self.dichotomy_folder, 'dist_dem_obsflow.tif')
wbt.downslope_distance_to_stream(self.watershed_fill, self.obs_flow, self.dist_dem_obsflow)
# Sim to Obs and Obsflow
wbt.add_point_coordinates_to_table(self.pt_sim)
wbt.extract_raster_values_at_points(self.dist_dem_obs, self.pt_sim)
wbt.add_point_coordinates_to_table(self.pt_simf)
wbt.extract_raster_values_at_points(self.dist_dem_obsflow, self.pt_simf)
# Simflow to Obs and Obsflow
wbt.add_point_coordinates_to_table(self.pt_sim_flow)
wbt.extract_raster_values_at_points(self.dist_dem_obs, self.pt_sim_flow)
wbt.add_point_coordinates_to_table(self.pt_sim_flowf)
wbt.extract_raster_values_at_points(self.dist_dem_obsflow, self.pt_sim_flowf)
def obs_to_sim(self):
# Simflow to points
self.pt_obs_flow = os.path.join(self.dichotomy_folder, 'obsflow.shp')
wbt.raster_to_vector_points(self.obs_flow, self.pt_obs_flow)
self.pt_obs_flowf = os.path.join(self.dichotomy_folder, 'obsflowf.shp')
wbt.raster_to_vector_points(self.obs_flow, self.pt_obs_flowf)
# Distance of dem to sim
self.dist_dem_sim = os.path.join(self.dichotomy_folder, 'dist_dem_sim.tif')
wbt.downslope_distance_to_stream(self.watershed_fill, self.tif_sim, self.dist_dem_sim)
# Distance of dem to simflow
self.dist_dem_simflow = os.path.join(self.dichotomy_folder, 'dist_dem_simflow.tif')
wbt.downslope_distance_to_stream(self.watershed_fill, self.sim_flow, self.dist_dem_simflow)
# Obs to Sim and Simflow
wbt.add_point_coordinates_to_table(self.pt_obs)
wbt.extract_raster_values_at_points(self.dist_dem_sim, self.pt_obs)
wbt.add_point_coordinates_to_table(self.pt_obsf)
wbt.extract_raster_values_at_points(self.dist_dem_simflow, self.pt_obsf)
# Obsflow to Sim and Simflow
wbt.add_point_coordinates_to_table(self.pt_obs_flow)
wbt.extract_raster_values_at_points(self.dist_dem_sim, self.pt_obs_flow)
wbt.add_point_coordinates_to_table(self.pt_obs_flowf)
wbt.extract_raster_values_at_points(self.dist_dem_simflow, self.pt_obs_flowf)
[ ]:
vers = 'DICHOT2' # dichotomy on 30 catchments (all hydrosystems)
box = False # or False
sink_fill = False # or True
sim_state = 'steady' # 'steady' or 'transient'
plot_cross = False
dis_perlen = True
nlay = 1
lay_decay = 1 # 1 for no decay
first_clim = 'mean' # or 'first or value
verti_hk = None # or [ [1e-5, [0, 20]],
verti_sy = None
verti_ss = None
cond_drain = None # or value of conductance
Kmin = 1e-10 * 3600 * 24
Klog_transf = False
sy = 1 / 100 # -
sy_decay = 0 # exponential decay : 1/20 (half decrease at 20m)
hk_decay = 0
ss = 1e-5
ss_decay = 0 # exponential decay : 1/20 (half decrease at 20m)
bc_left = None # or value
bc_right = None # or value
sea_level = 'None' # or value based on specific data : BV.oceanic.MSL
zone_partic = 'domain' # or watershed
vka = 1
bottom = None
thickness = 50
rec_data = pd.read_csv(rec_path, sep=',')
rec_data = rec_data[['time','rechg']]
rec_mean = rec_data.groupby('time', as_index=False).mean()
rec_mean['time'] = pd.to_datetime(rec_mean['time'])
rec_mean = rec_mean.set_index(['time'])
recharge_csv = rec_mean['rechg']
print(f"Recharge: {recharge_csv.mean()*365} mm/y")
Recharge: 750.909317 mm/y
[ ]:
BV = watershed_root.Watershed(watershed_name=watershed_name, dem_path=None, out_path=out_path, load=True)
area = BV.geographic.area
path_dem = BV.geographic.watershed_dem
dem = imageio.imread(path_dem)
dem = np.ma.masked_array(dem, mask=dem<0)
dem_cells = dem.count()
path_buff = BV.geographic.watershed_buff_dem
buff = imageio.imread(path_buff)
buff = np.ma.masked_array(buff, mask=buff<0)
buff_cells = buff.count()
path_box = BV.geographic.watershed_box_buff_dem
boxc = imageio.imread(path_box)
boxc = np.ma.masked_array(boxc, mask=boxc<0)
boxc_cells = boxc.count()
# Create folders
stable_folder = out_path+'/'+watershed_name+'/'+'results_stable/' # necessary for plots
simulations_folder = out_path+'/'+watershed_name+'/'+'results_simulations/' # necessary for plots
toolbox.create_folder(simulations_folder)
BV.calibration_folder = os.path.join(out_path, watershed_name, 'results_calibration')
toolbox.create_folder(BV.calibration_folder)
calibration_folder = os.path.join(out_path, watershed_name, 'results_calibration')
# Type obs hydro
BV.add_hydrography(data_path, types_obs=['stream_network_urse_reproj'])
# Objects
BV.add_settings()
BV.add_climatic()
BV.add_hydraulic()
BV.add_oceanic(sea_level)
# Updated
BV.settings.update_box_model(box)
BV.settings.update_sink_fill(sink_fill)
BV.settings.update_simulation_state(sim_state)
BV.climatic.update_first_clim(first_clim)
BV.hydraulic.update_nlay(nlay) # 1
BV.hydraulic.update_lay_decay(lay_decay) # 1
BV.hydraulic.update_cond_drain(cond_drain)
BV.hydraulic.update_sy(sy)
BV.hydraulic.update_sy_decay(sy_decay)
BV.hydraulic.update_ss(ss)
BV.hydraulic.update_ss_decay(ss_decay)
BV.hydraulic.update_vka(vka)
BV.hydraulic.update_hk_vertical(verti_hk)
BV.hydraulic.update_sy_vertical(verti_sy)
BV.hydraulic.update_ss_vertical(verti_ss)
BV.hydraulic.update_bottom(bottom)
BV.settings.update_dis_perlen(dis_perlen)
BV.settings.update_bc_sides(bc_left, bc_right)
BV.settings.update_input_particles(zone_partic=zone_partic)
BV.hydraulic.update_hk_decay(hk_decay, min_value=Kmin, log_transf=Klog_transf) # 0
BV.hydraulic.update_thick(thickness) # 30 / intervient pas si bottom != None
recharges = [
("REF", recharge_dict)
]
for irec, (name, drec) in enumerate(recharges):
df_optim = pd.DataFrame()
df_calib = pd.DataFrame()
mean_recharge_from_dict = (sum(drec.values()) / len(drec)).mean()
BV.climatic.update_recharge(drec, sim_state=sim_state)
KRmin = 1
KRmax = 1000
# Define permeability range
Kmin = KRmin * mean_recharge_from_dict
Kmax = KRmax * mean_recharge_from_dict
# Params
params_df = pd.DataFrame(columns=['params', 'init_values', 'lower_bounds', 'higher_bounds', 'units', 'scale'])
params_df.loc[0] = ['k1', '?', Kmin, Kmax, 'm/j', 'lin']
params_file = vers+'_BOUNDS_CALIB_PARAMS'
params_df.to_csv(BV.calibration_folder+'/'+params_file+'.csv', sep=';', index=None)
p_min = params_df['lower_bounds'].values[0]
p_max = params_df['higher_bounds'].values[0]
diff = p_max - p_min
half = (p_min + p_max) / 2
gap = 1
compt = 0
success_modflow = False # init
list_of_model_names = []
# Main dichotomy loop
valid_result = True
while (diff > ((gap/100) * half)):
half = (p_min + p_max) / 2
hyd_cond = half.copy() # if K in calib_params.csv
kr = hyd_cond / mean_recharge_from_dict
# Update value
BV.hydraulic.update_hk(hyd_cond)
# Change
model_name = vers+'_'+\
str(name)+'_'+\
str(watershed_name)+'_'+str(int(round(area,1)))+'_'+\
str(compt)+'_'+\
str(round(thickness,1))+'-'+str(int(round(mean_recharge_from_dict*365*1000,1)))+'_'+\
str("{:.1e}".format(hyd_cond/24/3600))+'-'+str(int(round(hyd_cond/mean_recharge_from_dict,1))) #+'-'+oclock
print(model_name)
BV.settings.update_model_name(model_name)
# Check grid
if compt == 0:
check_grid = True
else:
check_grid = False
BV.settings.update_check_model(plot_cross=plot_cross, check_grid=check_grid)
# Run
model_modflow = BV.preprocessing_modflow(for_calib=True) # BV.calibration_folder
success_modflow = BV.processing_modflow(model_modflow, write_model=True, run_model=True)
# Cells
if compt == 0:
prob_cells = model_modflow.prob_cells
# Post-process
BV.postprocessing_modflow(model_modflow,
watertable_elevation = True,
seepage_areas = True,
outflow_drain = True,
accumulation_flux = True,
watertable_depth = True,
groundwater_flux = True,
groundwater_storage = True,
intermittency_yearly = True,
export_all_tif = False)
iter_results = MatchingStreams(BV, iteration_label=model_name, from_calib=True)
# obs_to_sim = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','obs_pt.shp'))
# obs_to_simf = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','obs_ptf.shp'))
# obsf_to_sim = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','obsflow.shp'))
obsf_to_simf = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','obsflowf.shp'))
if not os.path.exists(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','simflowf.shp')):
valid_result = False
break # Sortie prématurée pour forcer retry ==> not really good
# sim_to_obs = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','sim_pt.shp'))
# sim_to_obsf = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','sim_ptf.shp'))
# simf_to_obs = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','simflow.shp'))
simf_to_obsf = gpd.read_file(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','simflowf.shp'))
# mean_obs_to_sim = np.nanmean(obs_to_sim[obs_to_sim['VALUE1']>=0]['VALUE1'])
# mean_obs_to_simf = np.nanmean(obs_to_simf[obs_to_simf['VALUE1']>=0]['VALUE1'])
# mean_obsf_to_sim = np.nanmean(obsf_to_sim[obsf_to_sim['VALUE1']>=0]['VALUE1'])
mean_obsf_to_simf = np.nanmean(obsf_to_simf[obsf_to_simf['VALUE1']>=0]['VALUE1'])
# mean_sim_to_obs = np.nanmean(sim_to_obs[sim_to_obs['VALUE1']>=0]['VALUE1'])
# mean_sim_to_obsf = np.nanmean(sim_to_obsf[sim_to_obsf['VALUE1']>=0]['VALUE1'])
# mean_simf_to_obs = np.nanmean(simf_to_obs[simf_to_obs['VALUE1']>=0]['VALUE1'])
mean_simf_to_obsf = np.nanmean(simf_to_obsf[simf_to_obsf['VALUE1']>=0]['VALUE1'])
### Conditions
obs = mean_obsf_to_simf
sim = mean_simf_to_obsf
indicator = sim/obs
if sim > obs:
p_min = half
if sim < obs:
p_max = half
if np.isnan(indicator):
p_max = half
diff = p_max - p_min
print('==> SIMULATION : '+str(compt))
print(' K/R = '+str(round(kr, 4)))
print(' GAP = '+str(round((gap/100) * kr, 4)))
print(' INDICATOR = '+str(round(indicator, 4)))
list_of_model_names.append(BV.calibration_folder+'/'+model_name+'/')
df_calib.loc[compt,'IDX_NODPOL'] = i
df_calib.loc[compt,'NAME_RECAL'] = watershed_name
df_calib.loc[compt,'MODEL_NAME'] = model_name
df_calib.loc[compt,'COMPT_SIM'] = compt
df_calib.loc[compt,'INPUT_REC'] = round(mean_recharge_from_dict*1000*365, 4) # mm/y
df_calib.loc[compt,'AQUI_THICK'] = round(thickness, 4)
df_calib.loc[compt,'DSO'] = round(sim, 4)
df_calib.loc[compt,'DOS'] = round(obs, 4)
df_calib.loc[compt,'DOPTIM'] = round((sim+obs)/2, 4)
df_calib.loc[compt,'DSO/DOS'] = round(indicator, 4)
df_calib.loc[compt,'DSO/DOS_LG'] = round(np.log10(indicator)**2, 10)
df_calib.loc[compt,'K_OPTIM'] = float("{:.5e}".format(hyd_cond/24/3600))
df_calib.loc[compt,'K/R_OPTIM'] = round(hyd_cond/mean_recharge_from_dict, 4)
df_calib.loc[compt,'TMAX_OPTIM'] = df_calib.loc[compt,'K_OPTIM'] * thickness
compt += 1
if (success_modflow==True) and (os.path.exists(os.path.join(BV.calibration_folder, model_name, '_matchingstreams','simflowf.shp'))):
# Save ALL
name_for_save = vers+'_'+str(name)+'_'+str(watershed_name)+'_'+str(round(area,1))
df_calib.to_csv(BV.calibration_folder+'/'+name_for_save+'_CALIB'+'.csv', sep=';', index=True)
# Save model_modflow
model_modflow = BV.preprocessing_modflow(for_calib=True) # BV.calibration_folder
dictio = {}
dictio['model_modflow'] = model_modflow
pickle_file = BV.calibration_folder+'/'+model_name+'.pkl'
with open(pickle_file, 'wb') as f:
pickle.dump(dictio, f)
del(dictio)
timeseries_results = BV.postprocessing_timeseries(model_modflow=model_modflow,
model_modpath=None,
datetime_format=False,
subbasin_results=False,
intermittency_yearly=True) # or None
listfile = os.path.join(BV.calibration_folder, model_name, model_name + '.list')
del(model_modflow)
sim_series = pd.read_csv(BV.calibration_folder+'/'+model_name+'/'+'_postprocess/_timeseries/_simulated_timeseries.csv', sep=';')
df_optim.loc[0,'IDX_NODPOL'] = i
df_optim.loc[0,'NAME_RECAL'] = watershed_name
df_optim.loc[0,'MODEL_NAME'] = model_name
df_optim.loc[0,'GRID_RES'] = 75
df_optim.loc[0,'GRID_BOX'] = boxc_cells
df_optim.loc[0,'GRID_BUFF'] = buff_cells
df_optim.loc[0,'GRID_CATCH'] = dem_cells
df_optim.loc[0,'GRID_CHECK'] = round(prob_cells, 4)
df_optim.loc[0,'COMPT_SIM'] = compt
df_optim.loc[0,'INPUT_REC'] = round(mean_recharge_from_dict*1000*365, 4) # mm/y
df_optim.loc[0,'AQUI_THICK'] = round(thickness, 4)
df_optim.loc[0,'DSO'] = round(sim, 4)
df_optim.loc[0,'DOS'] = round(obs, 4)
df_optim.loc[0,'DOPTIM'] = round((sim+obs)/2, 4)
df_optim.loc[0,'DSO/DOS'] = round(indicator, 4)
df_optim.loc[0,'OF_DSO/DOS'] = round(np.log10(indicator)**2, 10)
df_optim.loc[0,'K_OPTIM'] = float("{:.5e}".format(hyd_cond/24/3600))
df_optim.loc[0,'K/R_OPTIM'] = round(hyd_cond/mean_recharge_from_dict, 4)
df_optim.loc[0,'WT_ELEV'] = round(sim_series['watertable_elevation'].values[0], 4)
df_optim.loc[0,'WT_DEPTH'] = round(sim_series['watertable_depth'].values[0], 4)
df_optim.loc[0,'HSAT_OPTIM'] = round(thickness - sim_series['watertable_depth'].values[0], 4)
df_optim.loc[0,'HSAT_PROP'] = round((sim_series['watertable_depth'].values[0]/(thickness - sim_series['watertable_depth'].values[0])), 4)
df_optim.loc[0,'TMAX_OPTIM'] = df_optim.loc[0,'K_OPTIM'] * thickness
df_optim.loc[0,'TSAT_OPTIM'] = df_optim.loc[0,'K_OPTIM'] * df_optim.loc[0,'HSAT_OPTIM']
df_optim.loc[0,'GW_STORAG'] = round(sim_series['groundwater_storage'].values[0], 4)
df_optim.loc[0,'GW_FLOW'] = round(sim_series['groundwater_flux'].values[0]/(75*50), 4)
df_optim.loc[0,'DD_SEEP'] = round(sim_series['seepage_areas'].values[0], 4)
df_optim.loc[0,'DD_NETW'] = round(sim_series['total_areas'].values[0], 4)
df_optim.loc[0,'DD_RATIO'] = round(sim_series['total_areas'].values[0]/sim_series['seepage_areas'].values[0], 4)
df_optim.loc[0,'OUT_SEEP'] = round(sim_series['outflow_drain'].values[0]*365*1000, 4)
df_optim.loc[0,'OUT_ACC'] = round((1000*(BV.geographic.area*1e6)*sim_series['outflow_drain'].values[0])/24/60/60, 4)
df_optim.loc[0,'OUT_PROP'] = round(df_optim.loc[0,'OUT_SEEP'] / df_optim.loc[0,'INPUT_REC'], 4)
df_optim.to_csv(BV.calibration_folder+'/'+name_for_save+'_OPTIM'+'.csv', sep=';', index=True)
else:
df_optim.loc[0,:] = np.nan
df_optim.loc[0,'NAME_RECAL'] = watershed_name
name_for_save = vers+'_'+str(name)+'_'+str(watershed_name)+'_'+str(round(area,1))
df_optim.to_csv(BV.calibration_folder+'/'+name_for_save+'_OPTIM'+'.csv', sep=';', index=True)
[INFO] Python object was successfully loaded as requested; imported from output directory /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse
[INFO] Extracting hydrography data from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/10_coupling_with_land_surface_model_pyhelp/data
[INFO] Initializing settings module for groundwater parameters
[INFO] Initializing climatic module parameters
[INFO] Initializing hydraulic module for parameter setup
DICHOT2_REF_Example_10_Urse_6_0_50-750_1.2e-05-500
[INFO] MODFLOW grid connectivity check passed
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_0_50-750_1.2e-05-500.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:12
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:13
Elapsed run time: 0.507 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 0
K/R = 500.5
GAP = 5.005
INDICATOR = 0.0382
DICHOT2_REF_Example_10_Urse_6_1_50-750_6.0e-06-250
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_1_50-750_6.0e-06-250.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:13
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:14
Elapsed run time: 0.407 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 1
K/R = 250.75
GAP = 2.5075
INDICATOR = 0.2205
DICHOT2_REF_Example_10_Urse_6_2_50-750_3.0e-06-125
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_2_50-750_3.0e-06-125.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:15
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:15
Elapsed run time: 0.369 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 2
K/R = 125.875
GAP = 1.2588
INDICATOR = 1.5113
DICHOT2_REF_Example_10_Urse_6_3_50-750_4.5e-06-188
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_3_50-750_4.5e-06-188.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:16
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:16
Elapsed run time: 0.386 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 3
K/R = 188.3125
GAP = 1.8831
INDICATOR = 0.3013
DICHOT2_REF_Example_10_Urse_6_4_50-750_3.7e-06-157
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_4_50-750_3.7e-06-157.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:17
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:18
Elapsed run time: 0.365 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 4
K/R = 157.0938
GAP = 1.5709
INDICATOR = 0.4967
DICHOT2_REF_Example_10_Urse_6_5_50-750_3.4e-06-141
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_5_50-750_3.4e-06-141.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:19
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:19
Elapsed run time: 0.358 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 5
K/R = 141.4844
GAP = 1.4148
INDICATOR = 0.5338
DICHOT2_REF_Example_10_Urse_6_6_50-750_3.2e-06-133
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_6_50-750_3.2e-06-133.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:20
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:20
Elapsed run time: 0.360 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 6
K/R = 133.6797
GAP = 1.3368
INDICATOR = 0.6057
DICHOT2_REF_Example_10_Urse_6_7_50-750_3.1e-06-129
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_7_50-750_3.1e-06-129.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:21
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:22
Elapsed run time: 0.358 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 7
K/R = 129.7774
GAP = 1.2978
INDICATOR = 1.4557
DICHOT2_REF_Example_10_Urse_6_8_50-750_3.1e-06-131
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_8_50-750_3.1e-06-131.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:23
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:23
Elapsed run time: 0.359 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 8
K/R = 131.7285
GAP = 1.3173
INDICATOR = 0.6117
DICHOT2_REF_Example_10_Urse_6_9_50-750_3.1e-06-130
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: DICHOT2_REF_Example_10_Urse_6_9_50-750_3.1e-06-130.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:24
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
[INFO] Post-processing stress period 1/1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:58:24
Elapsed run time: 0.356 Seconds
Normal termination of simulation
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exporting yearly intermittency maps
==> SIMULATION : 9
K/R = 130.7529
GAP = 1.3075
INDICATOR = 1.4457
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse/results_calibration/DICHOT2_REF_Example_10_Urse_6_9_50-750_3.1e-06-130/_postprocess/_timeseries
[ ]:
BV = watershed_root.Watershed(watershed_name=watershed_name, dem_path=None, out_path=out_path, load=True)
area = BV.geographic.area
stable_folder = os.path.join(out_path, watershed_name, 'results_stable') # necessary for plots
simulations_folder = os.path.join(out_path, watershed_name, 'results_simulations')
calibration_folder = os.path.join(out_path, watershed_name, 'results_calibration')
model_names = [
path for path in glob.glob(os.path.join(calibration_folder, vers + '*'))
if os.path.isdir(path)
]
model_names.sort()
model_name_ref = model_names[-1]
WC0 = os.path.join(stable_folder, 'geographic', 'watershed.shp')
WC_shp = gpd.read_file(WC0)
HYD0 = os.path.join(stable_folder, 'hydrography', 'stream_network_urse_reproj.shp')
HYD_shp = gpd.read_file(HYD0)
for i, model_path in enumerate([model_name_ref]):
stable_folder = os.path.join(out_path, watershed_name, 'results_stable') # necessary for plots
simulations_folder = os.path.join(out_path, watershed_name, 'results_simulations')
calibration_folder = os.path.join(out_path, watershed_name, 'results_calibration')
simflowf_path = os.path.join(model_path, '_matchingstreams', 'simflowf.shp')
simflowf = gpd.read_file(simflowf_path)
fig, ax = plt.subplots(1,1, figsize=(10,10), dpi=300)
simflowf.plot(ax=ax, column='VALUE1', cmap='RdYlGn_r', lw=0, zorder=1, s=50,
marker='s',
vmin=0,vmax=25*10)
HYD_shp.plot(ax=ax, color='blue', lw=4, zorder=0)
WC_shp.plot(ax=ax, facecolor='None', zorder=2, lw=4)
plt.suptitle(os.path.basename(model_path), fontsize=10, y=1)
plt.tight_layout()
[INFO] Python object was successfully loaded as requested; imported from output directory /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_10_Urse
[21]:
os.chdir(DIR)
