Hydrographic Network In Steady State#
[2]:
# -*- coding: utf-8 -*-
"""
* Copyright (c) 2023 Alexandre Gauvain, Ronan Abhervé, Jean-Raynald de Dreuzy
*
* This program and the accompanying materials are made available under the
* terms of the Eclipse Public License 2.0 which is available at
* http://www.eclipse.org/legal/epl-2.0, or the Apache License, Version 2.0
* which is available at https://www.apache.org/licenses/LICENSE-2.0.
*
* SPDX-License-Identifier: EPL-2.0 OR Apache-2.0
"""
[2]:
'\n * Copyright (c) 2023 Alexandre Gauvain, Ronan Abhervé, Jean-Raynald de Dreuzy\n *\n * This program and the accompanying materials are made available under the\n * terms of the Eclipse Public License 2.0 which is available at\n * http://www.eclipse.org/legal/epl-2.0, or the Apache License, Version 2.0\n * which is available at https://www.apache.org/licenses/LICENSE-2.0.\n *\n * SPDX-License-Identifier: EPL-2.0 OR Apache-2.0\n'
[3]:
import sys
import os
import pickle
import numpy as np
import pandas as pd
import matplotlib as mpl
import matplotlib.pyplot as plt
import imageio
import whitebox
wbt = whitebox.WhiteboxTools()
wbt.verbose = True
# ROOT DIRECTORY
from os.path import dirname, abspath
try:
root_dir = '/home/bb/Documents/01_Git_Repository/01-HydroModPy-dev'
except NameError:
root_dir = os.getcwd()
sys.path.append(root_dir)
# HYDROMODPY MODULES
from hydromodpy import watershed_root
from hydromodpy.display import visualization_watershed, visualization_results
from hydromodpy.tools import toolbox
fontprop = toolbox.plot_params(8,15,18,20) # small, medium, interm, large
[4]:
example_path = os.path.join(root_dir, "examples", "03_hydrographic_network_in_steady_state/")
data_path = os.path.join(example_path, "data/")
# The folder out_path is created in the example_path root directory:
out_path = os.path.join(root_dir,'examples', 'results')
# Or define it manually
#out_path = 'D:/_HydroModPy/_results/'
print('The results of the example will be saved here :', out_path)
The results of the example will be saved here : /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results
[5]:
dem_path = os.path.join(data_path, 'regional dem.tif')
# dem_path = 'C:/Users/ronan/OneDrive/UNINE/12_Data/_GIS/dem/BDALTI_fr_75m.tif'
load = False
watershed_name = 'Example_03_Canut'
# watershed_name ='Strengbach'
from_lib = None # os.path.join(root_dir,'watershed_library.csv')
from_dem = None # [path, cell size]
from_shp = None # [path, buffer size]
from_xyv = [327816.965, 6777886.670, 150, 10 , 'EPSG:2154'] # [x, y, snap distance, buffer size, crs proj]
bottom_path = None # path
save_object = True
[ ]:
print('##### '+watershed_name.upper()+' #####')
load = True
BV = watershed_root.Watershed(dem_path=dem_path,
out_path=out_path,
load=load,
watershed_name=watershed_name,
from_lib=from_lib, # os.path.join(root_dir,'watershed_library.csv')
from_dem=from_dem, # [path, cell size]
from_shp=from_shp, # [path, buffer size]
from_xyv=from_xyv, # [x, y, snap distance, buffer size]
bottom_path=bottom_path, # path
save_object=save_object)
# Paths generated automatically but necessary for plots
stable_folder = os.path.join(out_path, watershed_name, 'results_stable')
simulations_folder = os.path.join(out_path, watershed_name, 'results_simulations')
[INFO] __ __ __ __ ____ ________
[INFO] / / / / / / / \/ / / / __ /
[INFO] / /_/ /_ ______/ /________ / /___ ____/ / /_/ /_ __
[INFO] / __ / / / / __ / ___/ __ \/ /\,-/ / __ \/ __ / ____/ / / /
[INFO] / / / / /_/ / /_/ / / / /_/ / / / / /_/ / /_/ / / / /_/ /
[INFO] /_/ /_/\__, /_____/_/ \____/_/ /_/\____/_____/_/____\__, /
[INFO] /____/ Hydrological Modelling in Python /_____________/
[INFO]
[INFO] Python object was successfully loaded as requested; imported from output directory /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut
##### EXAMPLE_03_CANUT #####
[ ]:
visualization_watershed.watershed_local(dem_path, BV)
if from_dem == None:
# Clip specific data at the catchment scale
BV.add_geology(data_path, types_obs='GEO1M.shp', fields_obs='CODE_LEG')
BV.add_hydrography(data_path, types_obs=['regional stream network'])
BV.add_hydrometry(data_path, 'france hydrometric stations.shp')
BV.add_intermittency(data_path, 'regional onde stations.shp')
# BV.add_piezometry()
# Extract some subbasin from data available above
BV.add_subbasin(os.path.join(data_path, 'additional'), 150)
# General plot of the study site
if from_dem == None:
visualization_watershed.watershed_geology(BV)

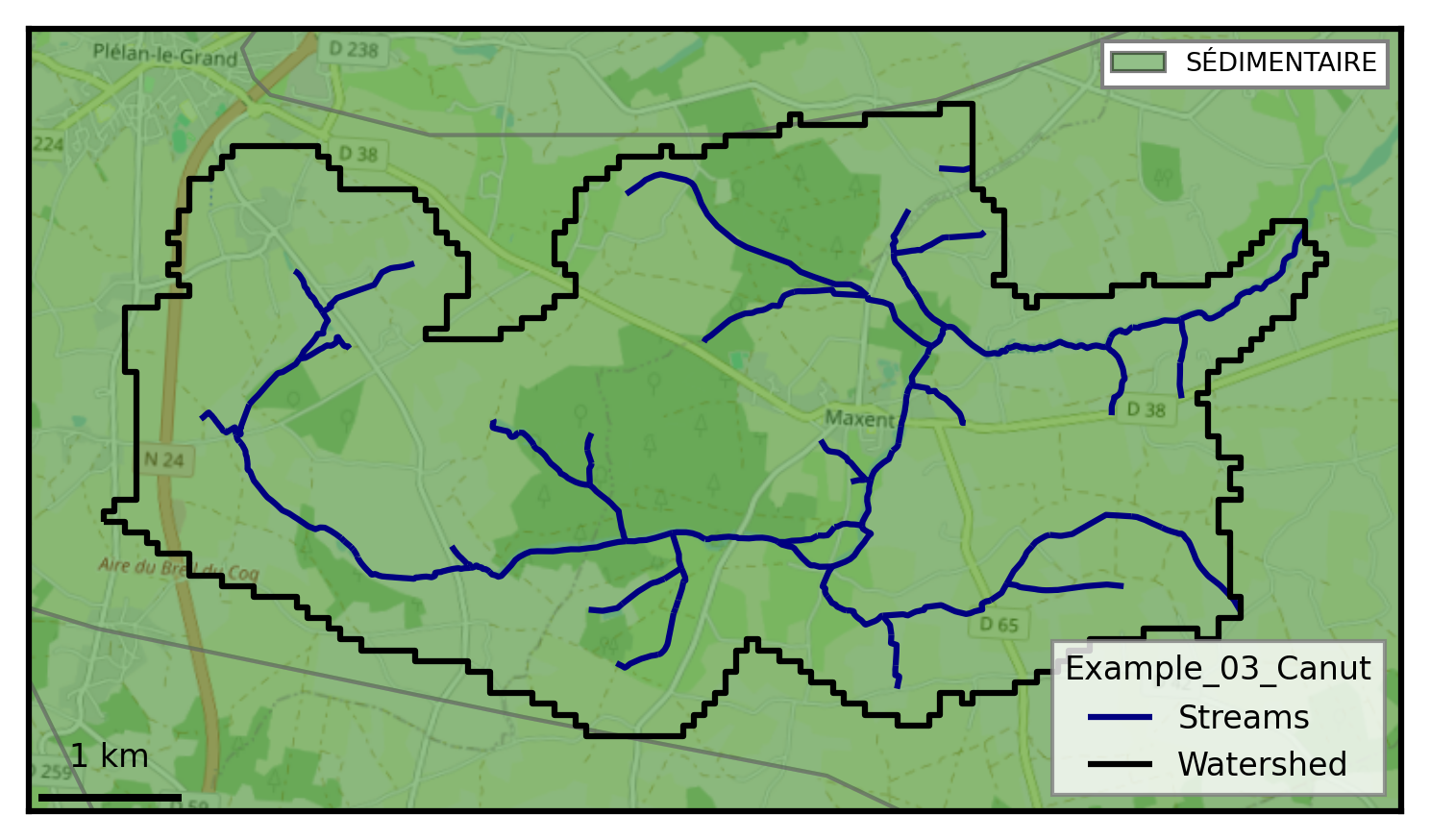

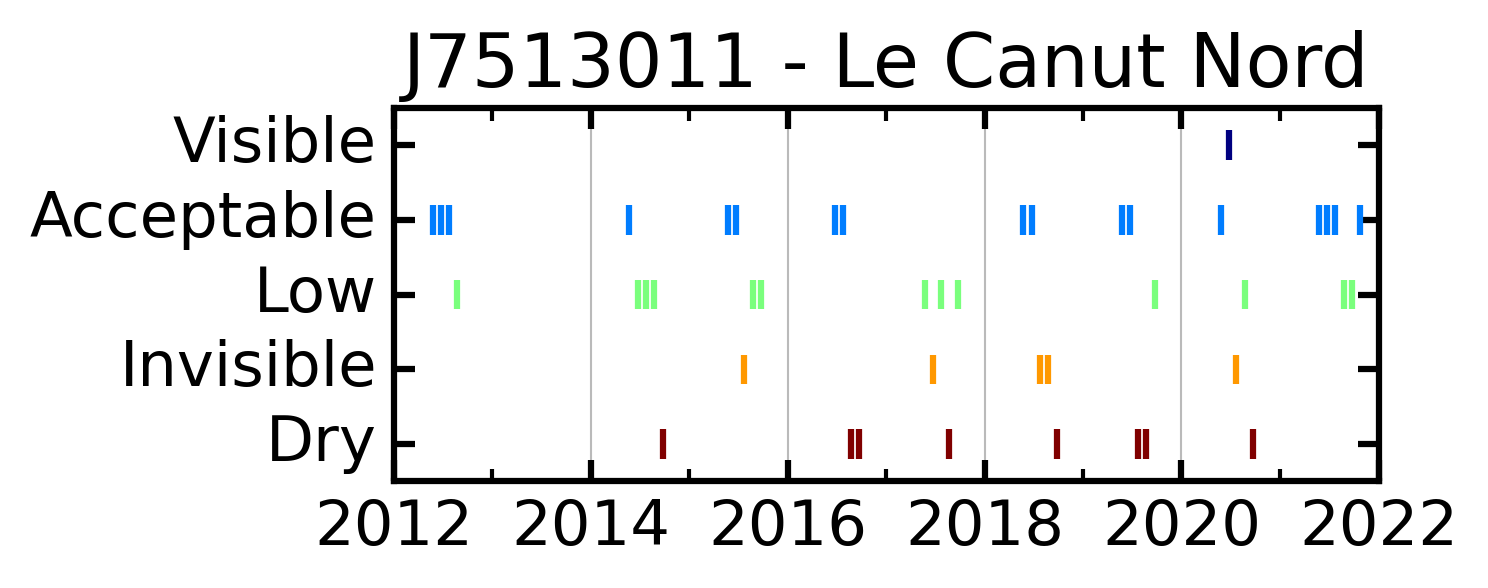

visualization_watershed.watershed_dem(BV)
[INFO] Extracting geology data from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/03_hydrographic_network_in_steady_state/data/
[INFO] Extracting hydrography data from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/03_hydrographic_network_in_steady_state/data/
[INFO] Extracting hydrometry data from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/03_hydrographic_network_in_steady_state/data/
[INFO] Extracting stream intermittency data from /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/03_hydrographic_network_in_steady_state/data/
[INFO] Extracting subbasin definitions for watershed
[8]:
# # Necessary to set model parameters
BV.add_climatic()
BV.climatic.update_recharge_reanalysis(path_file=os.path.join(data_path,'_climate_REANALYSIS.csv'),
clim_mod='REA',
clim_sce='historic',
first_year=1990,
last_year=2019,
time_step='D',
sim_state='transient')
BV.climatic.update_runoff_reanalysis(path_file=os.path.join(data_path,'_climate_REANALYSIS.csv'),
clim_mod='REA',
clim_sce='historic',
first_year=1990,
last_year=2019,
time_step='D',
sim_state='transient')

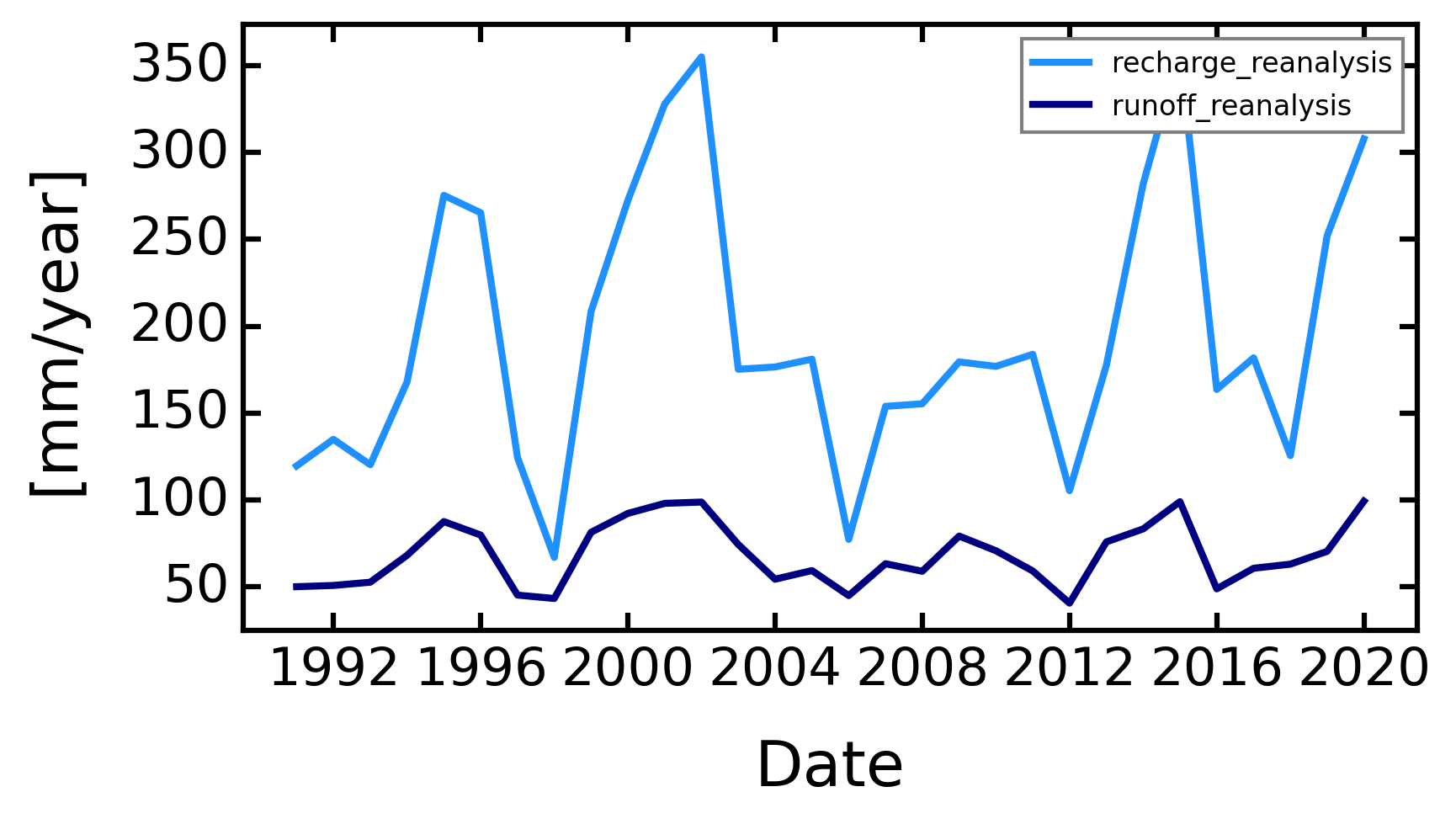

fig, ax = plt.subplots(1,1, figsize=(6,3))
R = BV.climatic.recharge.resample('Y').sum()#*1000
r = BV.climatic.runoff.resample('Y').sum()#*1000
ax.plot(R, label='recharge_reanalysis', c='dodgerblue', lw=2)
ax.plot(r, label='runoff_reanalysis', c='navy', lw=2)
ax.set_xlabel('Date')
ax.set_ylabel('[mm/year]')
ax.legend()
[INFO] Initializing climatic module parameters
[8]:
<matplotlib.legend.Legend at 0x7cab1011a850>
[9]:
# Frame settings
box = True # or False
sink_fill = False # or True
# sim_state = 'transient' # 'steady' or 'transient'
sim_state = 'steady' # 'steady' or 'transient'
plot_cross = False
check_grid = False
dis_perlen=False
# Climatic settings
recharge = pd.Series([10,20,30,40,50,60,60,50,40,30,20,10])/30/1000
first_clim = 'mean' # or 'first or value
freq_time = 'M'
# Hydraulic settings
nlay = 5
lay_decay = 1 # 1 for no decay
bottom = None # elevation in meters, None for constant auifer thickness, or 2D matrix
thick = 50 # if bottom is None, aquifer thickness
cond_drain = None # or value of conductance
sy = 10 / 100 # -
########## LOOP ##########
list_hyd_cond = np.geomspace(1e-8,1e-3,10) * 24 * 3600 # m/day
# Boundary settings
bc_left = None # or value
bc_right = None # or value
sea_level = 'None' # or value based on specific data : BV.oceanic.MSL
# Particle tracking settings
zone_partic = 'domain' # or watershed
[10]:
# Import modules
BV.add_settings()
BV.add_climatic()
BV.add_hydraulic()
# Frame settings
BV.settings.update_box_model(box)
BV.settings.update_sink_fill(sink_fill)
BV.settings.update_simulation_state(sim_state)
BV.settings.update_check_model(plot_cross=plot_cross, check_grid=check_grid)
# Climatic settings
BV.climatic.update_recharge(recharge, sim_state=sim_state)
BV.climatic.update_first_clim(first_clim)
# Hydraulic settings
BV.hydraulic.update_nlay(nlay) # 1
BV.hydraulic.update_bottom(bottom) # None
BV.hydraulic.update_thick(thick) # 30 / intervient pas si bottom != None
BV.hydraulic.update_sy(sy)
BV.hydraulic.update_cond_drain(cond_drain)
BV.hydraulic.update_lay_decay(lay_decay)
# Boundary settings
BV.settings.update_bc_sides(bc_left, bc_right)
BV.add_oceanic(sea_level)
BV.settings.update_dis_perlen(dis_perlen=dis_perlen)
# Particle tracking settings
BV.settings.update_input_particles(zone_partic=BV.geographic.watershed_box_buff_dem) # or 'seepage_path'
[INFO] Initializing settings module for groundwater parameters
[INFO] Initializing climatic module parameters
[INFO] Initializing hydraulic module for parameter setup
[ ]:
iD_set_simulations = 'explorK_test1'
list_model_name = []
list_success_modflow = []
list_model_modflow = []
for hyd_cond in list_hyd_cond:
BV.hydraulic.update_hk(hyd_cond)
model_name = iD_set_simulations+'_'+str(round(hyd_cond,3))
BV.settings.update_model_name(model_name)
print(model_name)
model_modflow = BV.preprocessing_modflow(for_calib=False)
success_modflow = BV.processing_modflow(model_modflow, write_model=True, run_model=True)
list_model_name.append(model_name)
list_success_modflow.append(success_modflow)
list_model_modflow.append(model_modflow)
dictio = {}
dictio['list_model_name'] = list_model_name
dictio['list_success_modflow'] = list_success_modflow
dictio['list_model_modflow'] = list_model_modflow
pickle_file = os.path.join(simulations_folder,'results_listing_'+iD_set_simulations+'.pkl')
with open(pickle_file, 'wb') as f:
pickle.dump(dictio, f)
explorK_test1_0.001
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_0.001.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:25
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:26
Elapsed run time: 0.408 Seconds
Normal termination of simulation
explorK_test1_0.003
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_0.003.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:26
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:26
Elapsed run time: 0.444 Seconds
Normal termination of simulation
explorK_test1_0.011
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_0.011.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:26
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:27
Elapsed run time: 0.458 Seconds
Normal termination of simulation
explorK_test1_0.04
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_0.04.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:27
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:28
Elapsed run time: 0.548 Seconds
Normal termination of simulation
explorK_test1_0.144
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_0.144.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:28
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:28
Elapsed run time: 0.594 Seconds
Normal termination of simulation
explorK_test1_0.518
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_0.518.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:29
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:29
Elapsed run time: 0.826 Seconds
Normal termination of simulation
explorK_test1_1.861
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_1.861.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:30
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:31
Elapsed run time: 1.091 Seconds
Normal termination of simulation
explorK_test1_6.69
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_6.69.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:31
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:32
Elapsed run time: 1.514 Seconds
Normal termination of simulation
explorK_test1_24.041
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_24.041.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:33
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:35
Elapsed run time: 1.988 Seconds
Normal termination of simulation
explorK_test1_86.4
FloPy is using the following executable to run the model: ../../../../../bin/linux/mfnwt
MODFLOW-NWT-SWR1
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUNDWATER-FLOW MODEL
WITH NEWTON FORMULATION
Version 1.3.0 07/01/2022
BASED ON MODFLOW-2005 Version 1.12.0 02/03/2017
SWR1 Version 1.05.0 03/10/2022
Using NAME file: explorK_test1_86.4.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:35
Solving: Stress period: 1 Time step: 1 Groundwater-Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/11/12 1:47:38
Elapsed run time: 3.622 Seconds
Normal termination of simulation
[12]:
pickle_file = os.path.join(simulations_folder,'results_listing_'+iD_set_simulations+'.pkl')
with open(pickle_file, 'rb') as f:
d = pickle.load(f)
list_model_name = d['list_model_name'][:]
list_success_modflow = d['list_success_modflow'][:]
list_model_modflow = d['list_model_modflow'][:]
[ ]:
for model_name, success_modflow, model_modflow in zip(list_model_name,
list_success_modflow,
list_model_modflow):
if success_modflow == True:
BV.postprocessing_modflow(model_modflow,
watertable_elevation = True,
watertable_depth= True,
seepage_areas = True,
outflow_drain = True,
groundwater_flux = True,
groundwater_storage = True,
accumulation_flux = True,
persistency_index=False,
intermittency_monthly=False,
intermittency_daily=False,
export_all_tif = False)
timeseries_results = BV.postprocessing_timeseries(model_modflow=model_modflow,
model_modpath=None,
datetime_format=False,
subbasin_results=True) # or None
netcdf_results = BV.postprocessing_netcdf(model_modflow,
datetime_format=False)
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.001/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.001/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.001/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.001/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_0.001
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.003/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.003/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.003/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.003/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_0.003
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.011/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.011/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.011/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.011/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_0.011
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.04/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.04/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.04/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.04/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_0.04
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.144/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.144/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.144/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.144/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_0.144
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.518/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.518/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.518/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_0.518/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_0.518
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_1.861/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_1.861/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_1.861/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_1.861/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_1.861
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_6.69/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_6.69/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_6.69/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_6.69/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_6.69
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_24.041/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_24.041/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_24.041/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_24.041/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_24.041
[INFO] Post-processing stress period 1/1
[INFO] Exporting watertable elevation time series
[INFO] Exporting watertable depth time series
[INFO] Exporting seepage areas time series
[INFO] Exporting outflow drain time series
[INFO] Exporting groundwater flux time series
[INFO] Exporting groundwater storage time series
[INFO] Exporting accumulation flux time series
[INFO] Exported catchment time series to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_86.4/_postprocess/_timeseries
[INFO] Exported time series for subbasin 1 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_86.4/_subbasins/hydrometry_J7513010
[INFO] Exported time series for subbasin 2 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_86.4/_subbasins/intermittency_J7513011
[INFO] Exported time series for subbasin 3 to /home/bb/Documents/01_Git_Repository/01-HydroModPy-dev/examples/results/Example_03_Canut/results_simulations/explorK_test1_86.4/_subbasins/subbasin_upstreamA
[INFO] Exporting MODFLOW results as NetCDF for model explorK_test1_86.4
[ ]:
compt = 1
for model_name, success_modflow, model_modflow in zip(list_model_name,
list_success_modflow,
list_model_modflow):

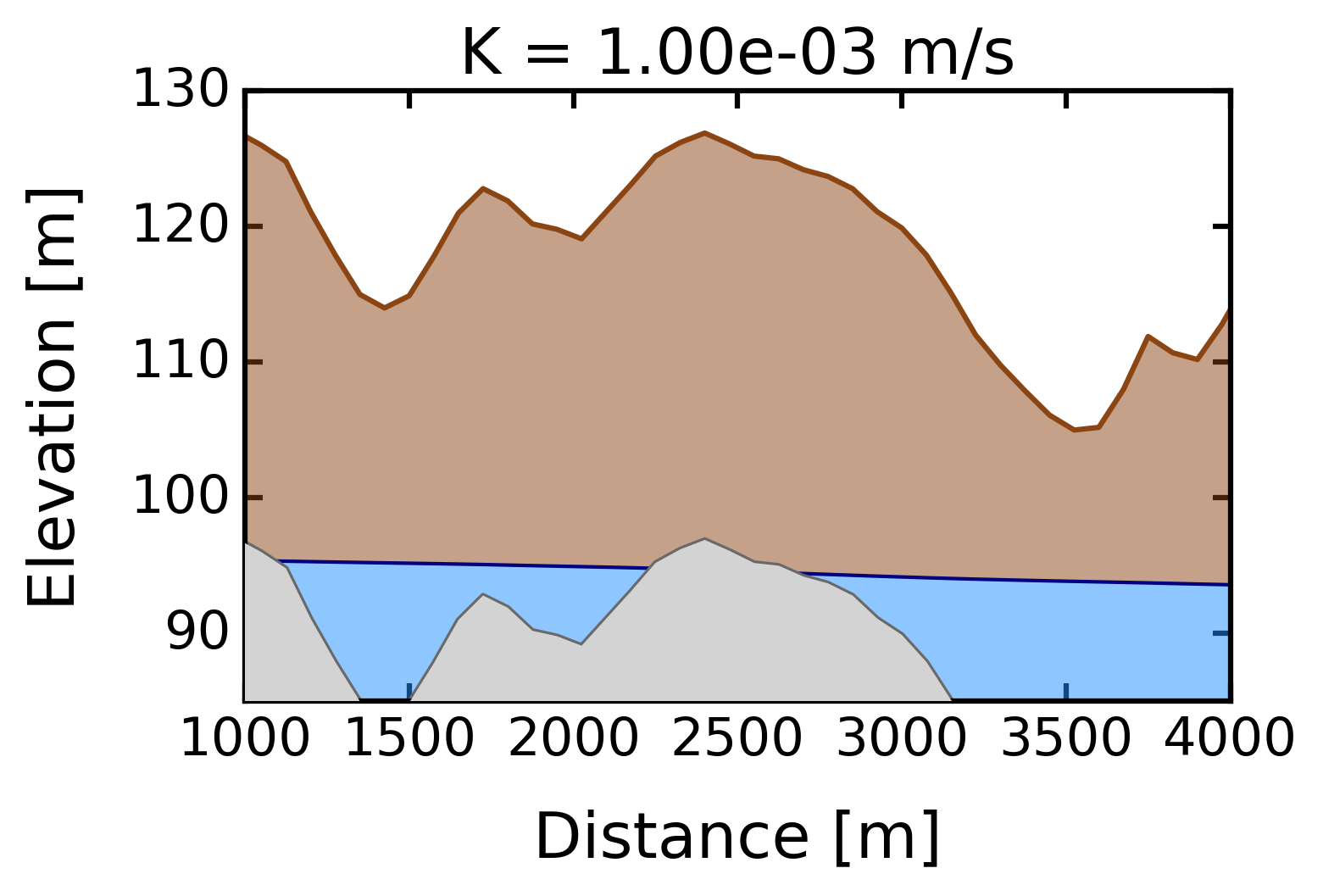

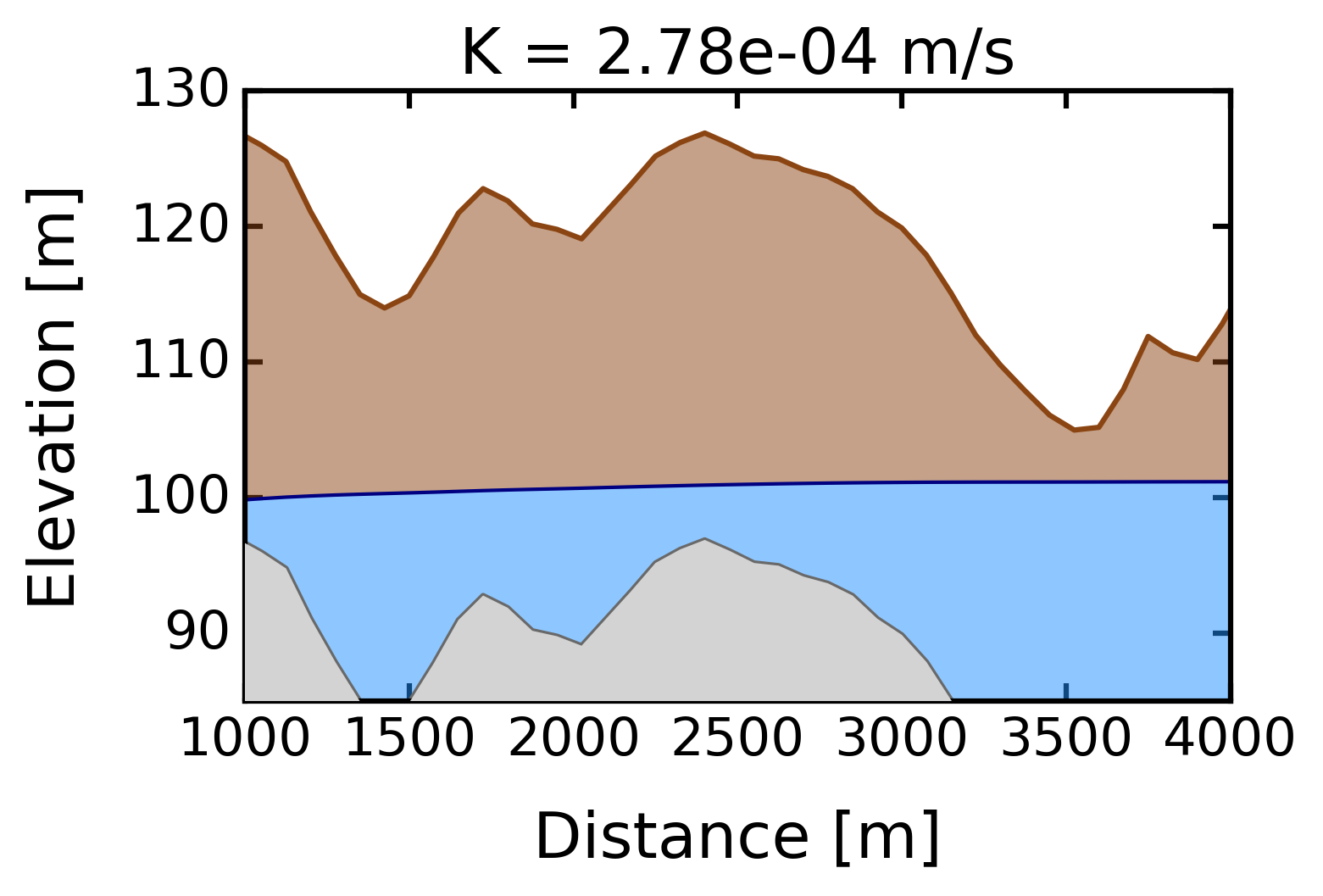

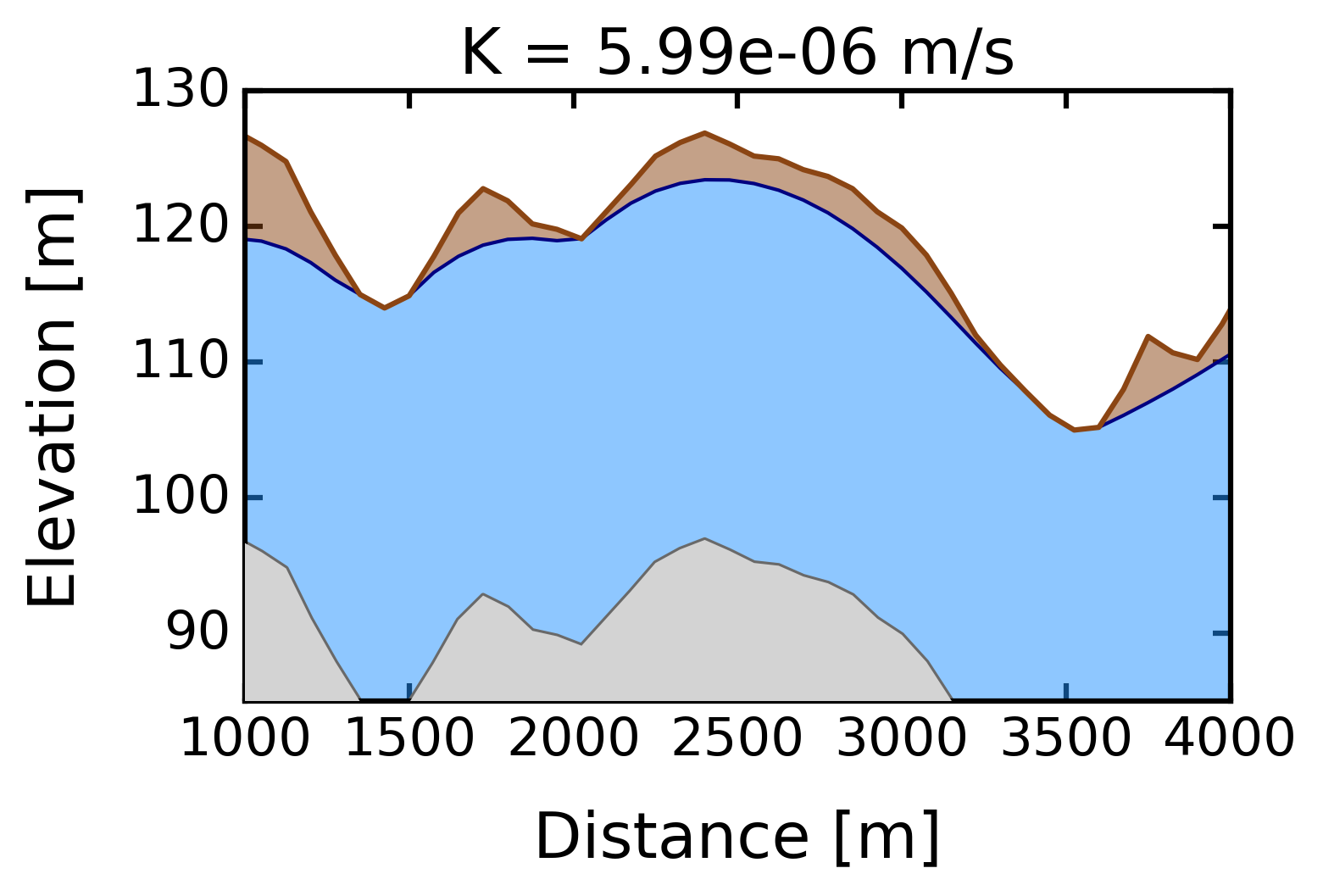

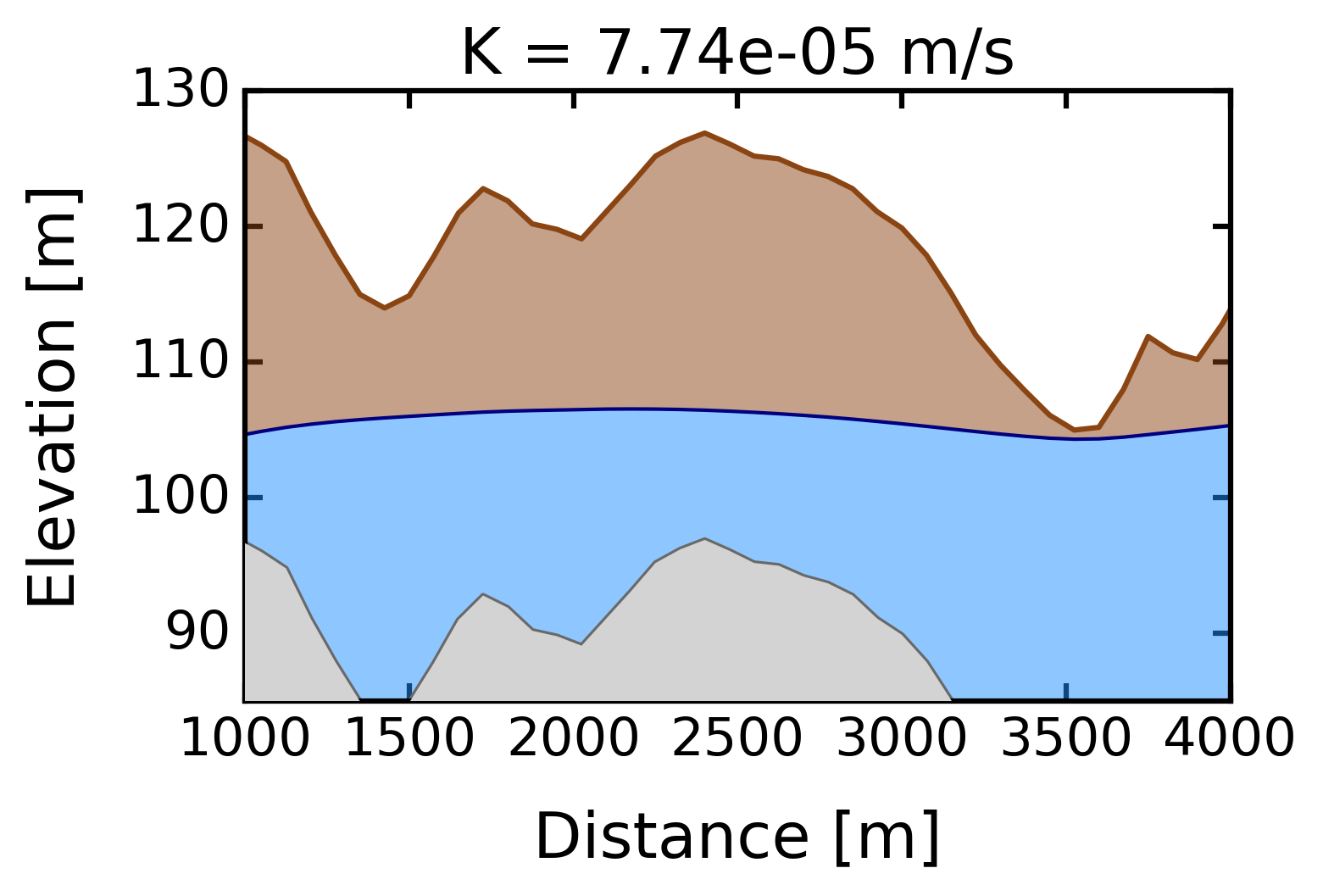

fig, ax = plt.subplots(1, 1, figsize=(5,3), dpi=300)
stable_folder = os.path.join(out_path, watershed_name, 'results_stable') # necessary for plots
simulations_folder = os.path.join(out_path, watershed_name, 'results_simulations')
dem_data = imageio.imread(BV.geographic.watershed_dem)
dem_data = np.ma.masked_where(dem_data < 0, dem_data)
wt_data = imageio.imread(os.path.join(simulations_folder, model_name,
r'_postprocess/_rasters/watertable_elevation_t(0).tif'))
wt_data = np.ma.masked_where(wt_data < 0, wt_data)
river_data = imageio.imread(os.path.join(stable_folder, 'hydrography',
'regional stream network.tif'))
xvalues = np.linspace(-1,1,dem_data.shape[1])
yvalues = np.linspace(-1,1,dem_data.shape[0])
xx, yy = np.meshgrid(xvalues,yvalues)
cur_x = dem_data.shape[1] /2
# cur_y = dem_data.shape[0] /2
dem_prof = dem_data.astype(float)
dem_prof[dem_prof<0] = np.nan
dem_v_plot = dem_prof[:,int(cur_x)]
dem_v_plot[dem_v_plot == 0] = np.nan
wt_prof = wt_data.astype(float)
wt_prof[wt_prof<0] = np.nan
wt_v_plot = wt_prof[:,int(cur_x)]
wt_v_plot[wt_v_plot == 0] = np.nan
# wt_prof_min = wt_data.astype(float)
# wt_prof_min[wt_prof_min<0] = np.nan
# wt_v_plot_min = wt_prof_min[:,int(cur_x)]
# wt_v_plot_min[wt_v_plot_min == 0] = np.nan
# Facecolor watertable

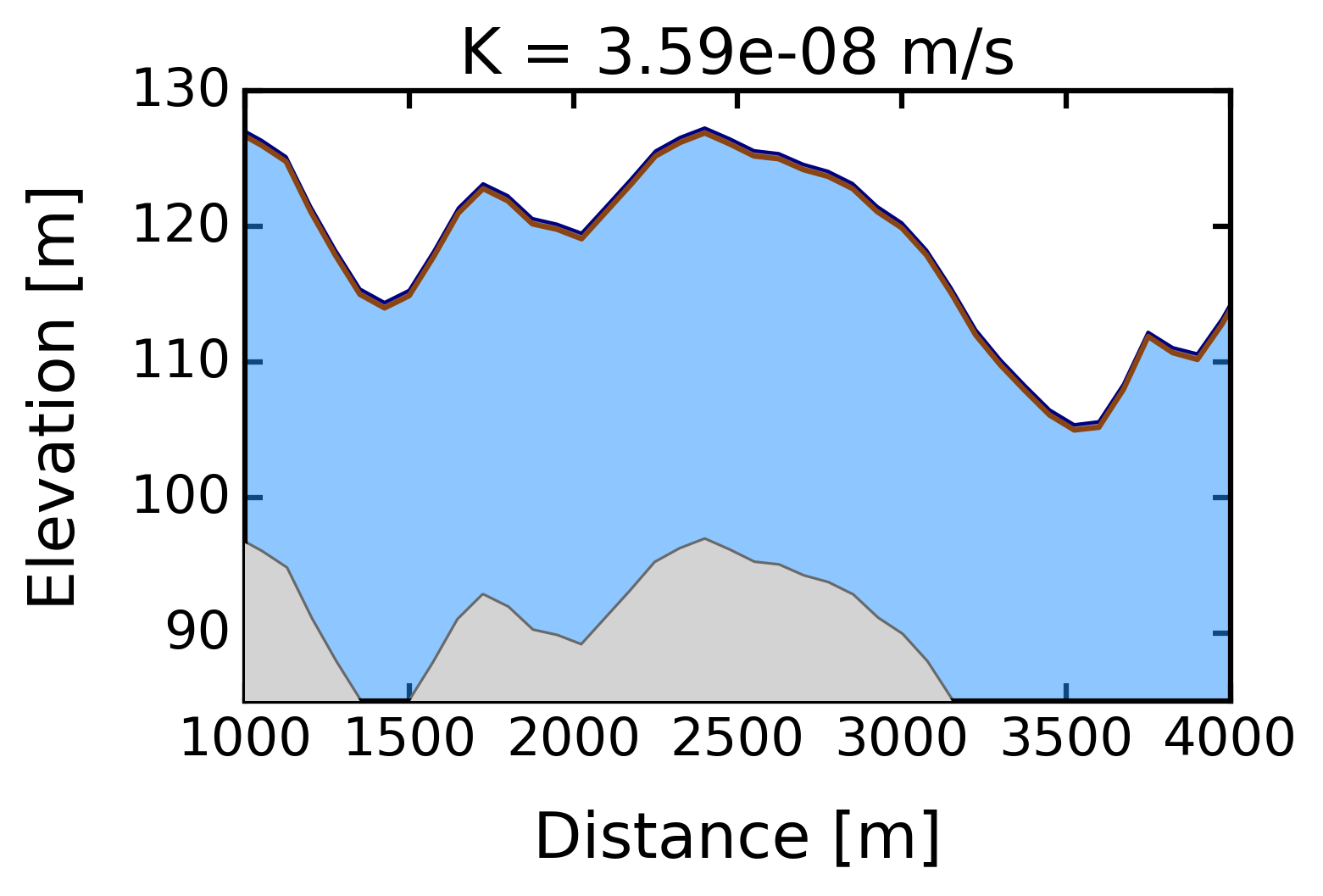

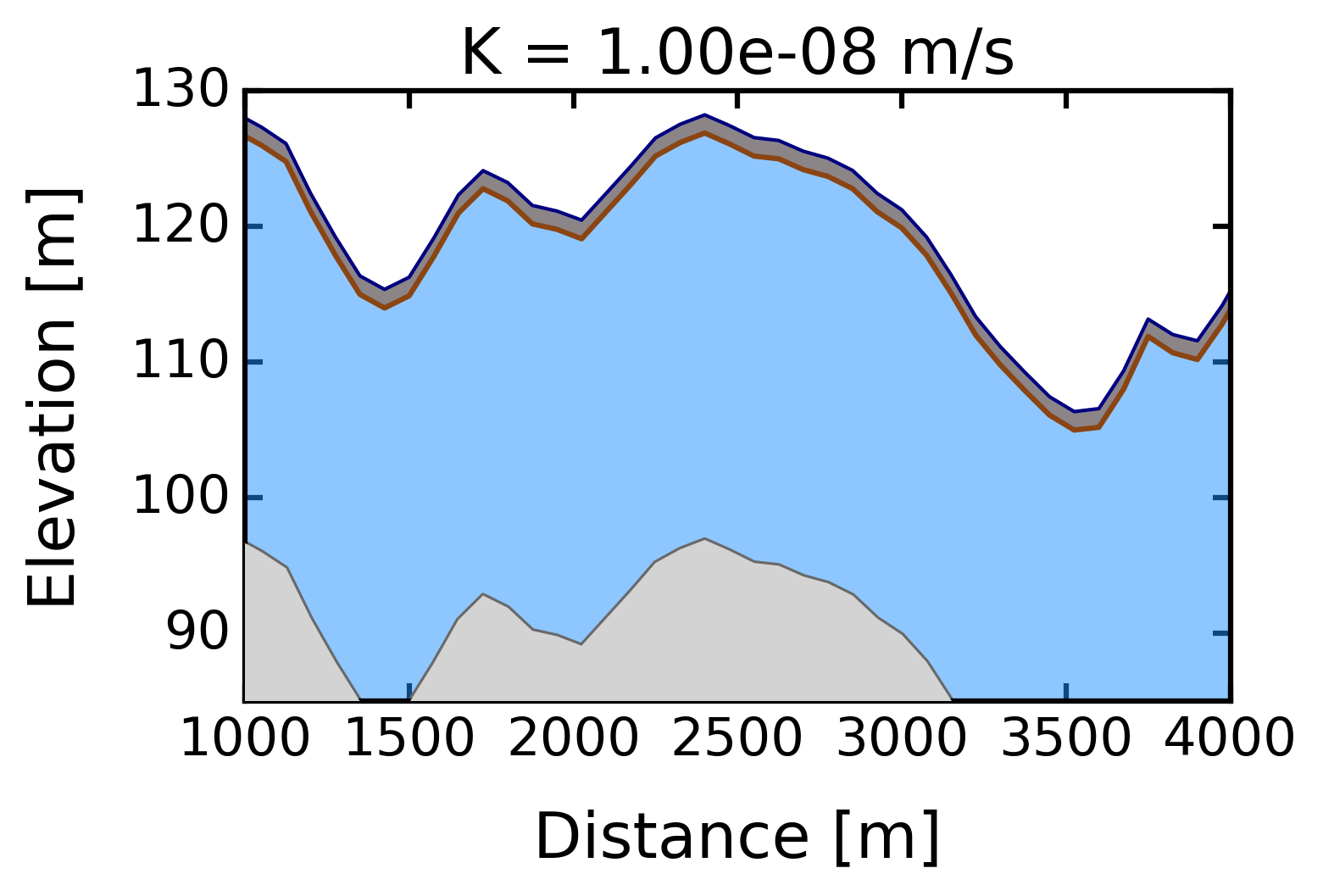

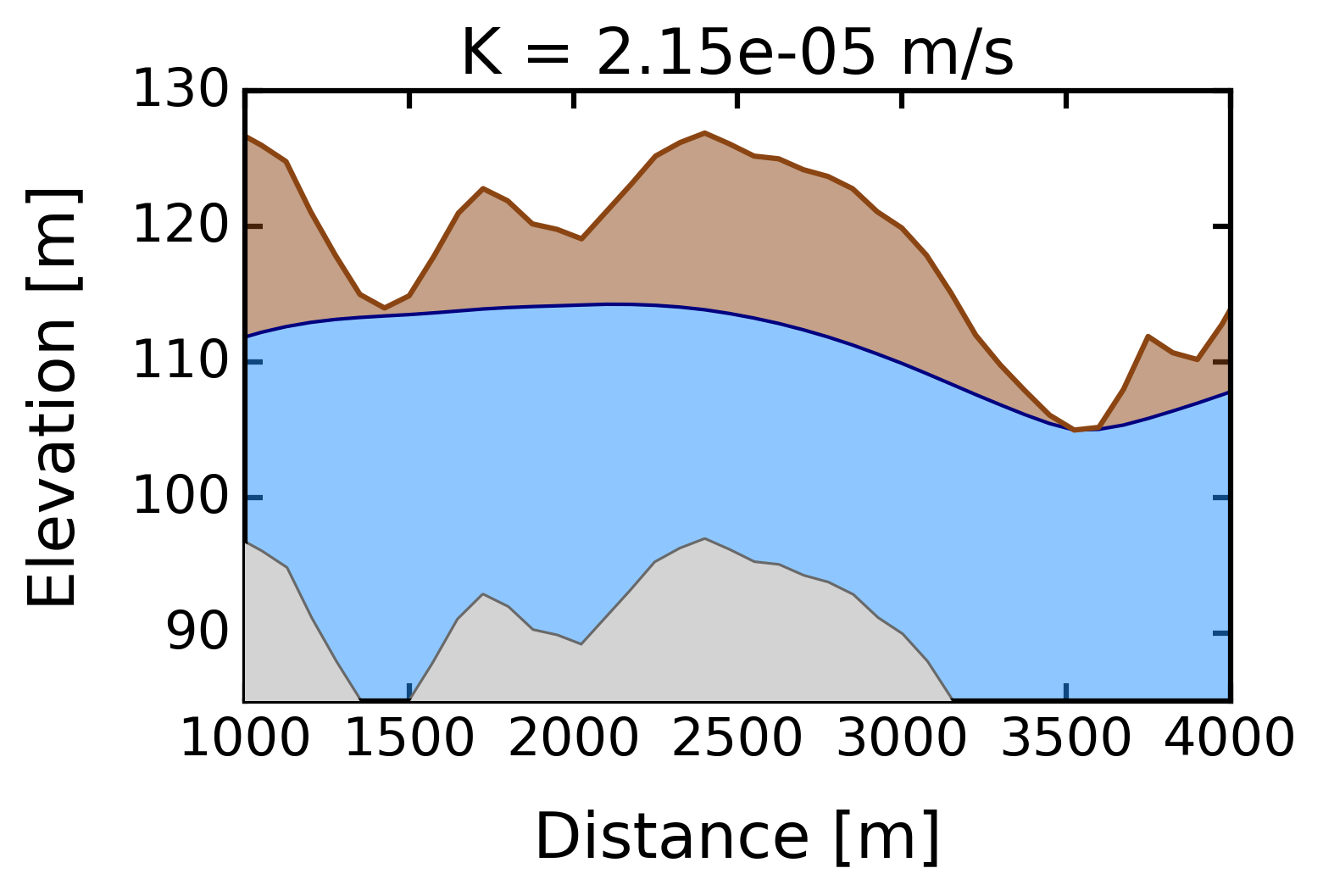

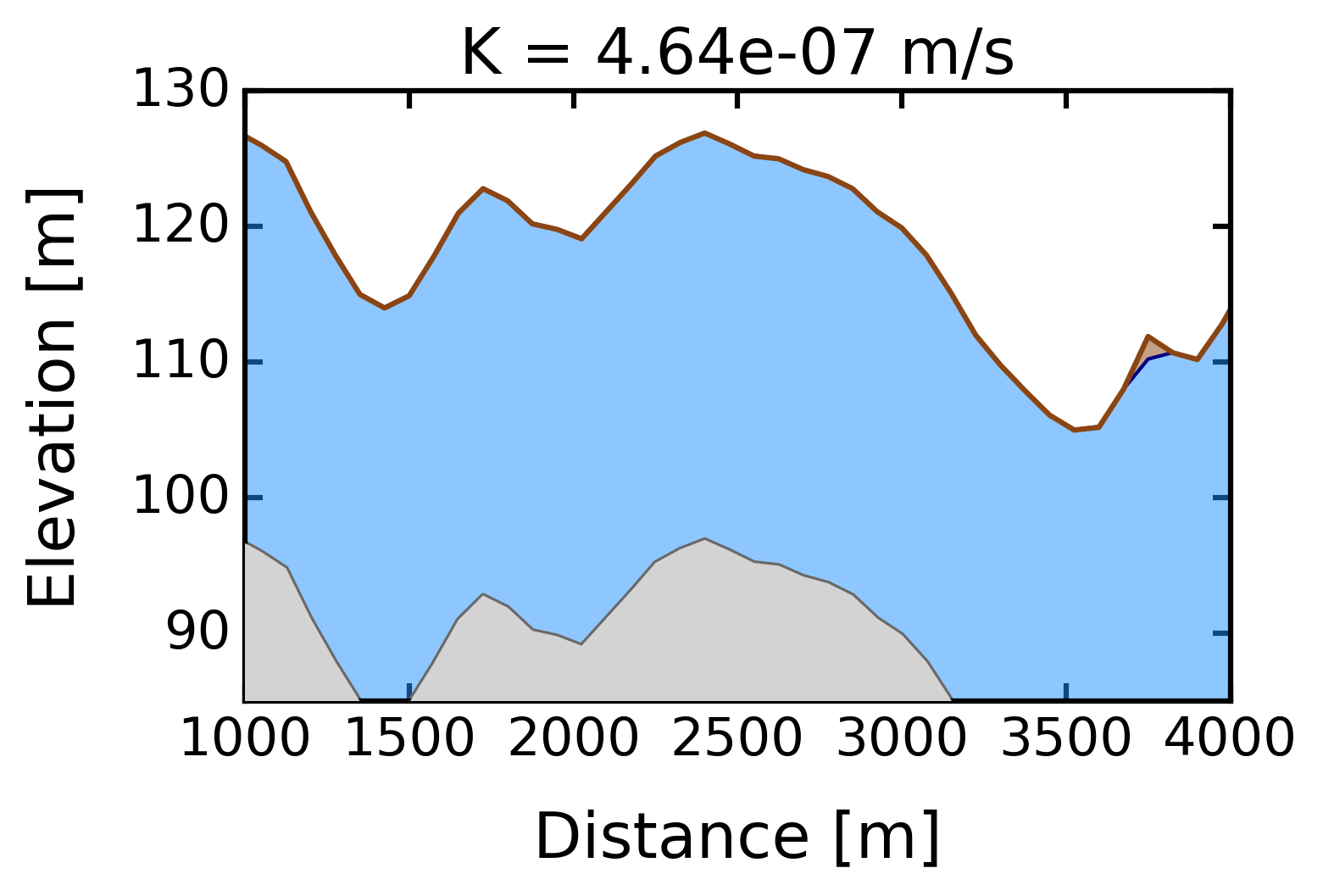

wt_v_fill = ax.fill_between(np.arange(xx.shape[0])*75,
dem_v_plot-30, wt_v_plot,
color='dodgerblue', alpha=0.5, lw=0)
# Line watertable
w_prof = ax.plot(np.arange(xx.shape[0])*75, wt_v_plot, color='navy', lw=1)
# Facecolor unsaturated
wt_v_fill = ax.fill_between(np.arange(xx.shape[0])*75,
wt_v_plot, dem_v_plot,
color='saddlebrown', alpha=0.5, lw=0)
# Line unsaturated
d_prof = ax.plot(np.arange(xx.shape[0])*75, dem_v_plot, 'saddlebrown', lw=1.5)
# Facecolor noflow
ax.fill_between(np.arange(xx.shape[0])*75,
0, dem_v_plot-30,
color='lightgrey', alpha=1, lw=0, zorder=10)
# Line noflow
ax.plot(np.arange(xx.shape[0])*75, dem_v_plot-30, color='dimgray', lw=1.5)
# Settings
ax.set_xlim(1000, 4000)
ax.set_ylim(85, 130)
ax.set_yticks([90,100,110,120,130])
ax.set_xlabel('Distance [m]')
ax.set_ylabel('Elevation [m]')
ax.set_title('K = '+'{:.2e}'.format(model_modflow.hk.mean()/24/3600)+' m/s')
compt += 1
fig.tight_layout
# fig.savefig(os.path.join(model_modflow.figure_file,
# 'CROSS_'+model_name+'_'+str(compt)+'.png'),
# bbox_inches='tight')
# fig.savefig(os.path.join(model_modflow.save_fig,
# 'CROSS_'+model_name+'_'+str(compt)+'.png'),
# bbox_inches='tight')
[ ]:
compt = 0
for model_name, success_modflow, model_modflow in zip(list_model_name,
list_success_modflow,
list_model_modflow):

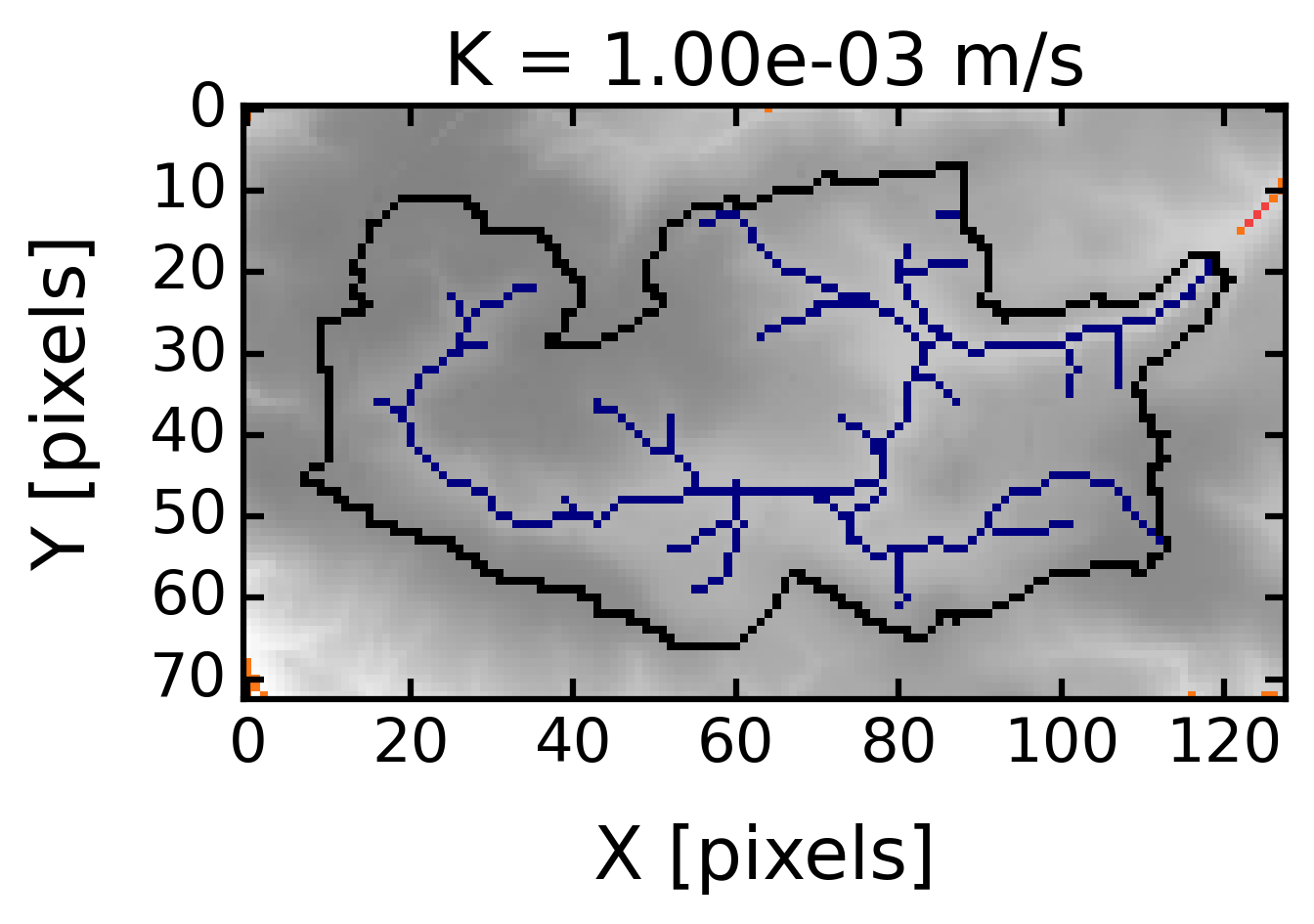

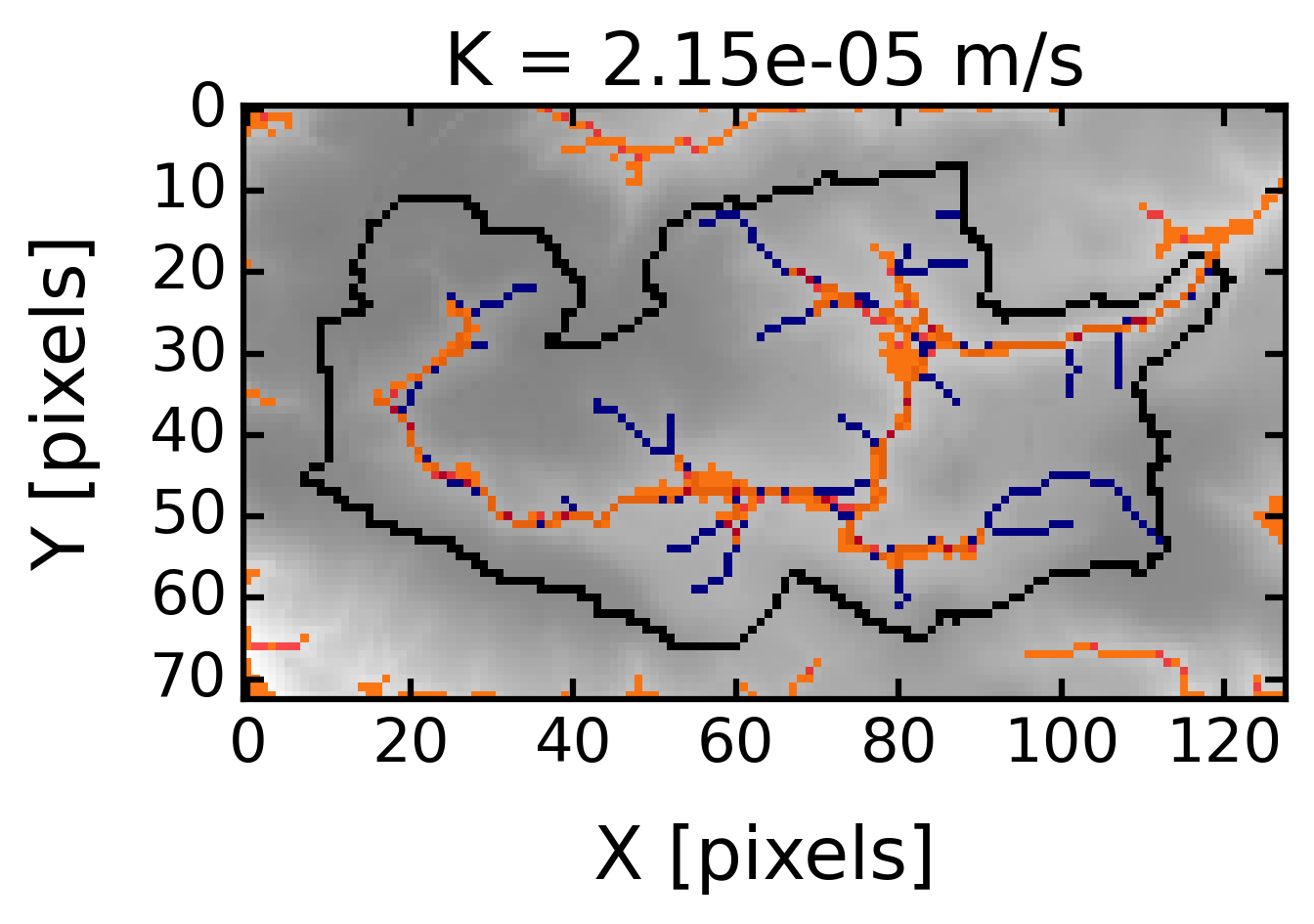

fig, ax = plt.subplots(1, 1, figsize=(5,3), dpi=300)
stable_folder = os.path.join(out_path, watershed_name, 'results_stable') # necessary for plots
simulations_folder = os.path.join(out_path, watershed_name, 'results_simulations')
dem_data = imageio.imread(BV.geographic.watershed_box_buff_dem)
dem_data = np.ma.masked_where(dem_data < 0, dem_data)
contour = imageio.imread(BV.geographic.watershed_contour_tif)
contour = np.ma.masked_where(contour < 0, contour)
obs_river_data = imageio.imread(os.path.join(stable_folder, 'hydrography',
'regional stream network.tif'))
obs_river_data = np.ma.masked_where(obs_river_data < 0, obs_river_data)
seep_river_data = imageio.imread(os.path.join(simulations_folder, model_name,
r'_postprocess/_rasters/seepage_areas_t(0).tif'))
seep_river_data = np.ma.masked_where(seep_river_data <= 0, seep_river_data)
sim_river_data = imageio.imread(os.path.join(simulations_folder, model_name,
r'_postprocess/_rasters/accumulation_flux_t(0).tif'))
sim_river_data = np.ma.masked_where(sim_river_data <= 0, sim_river_data)

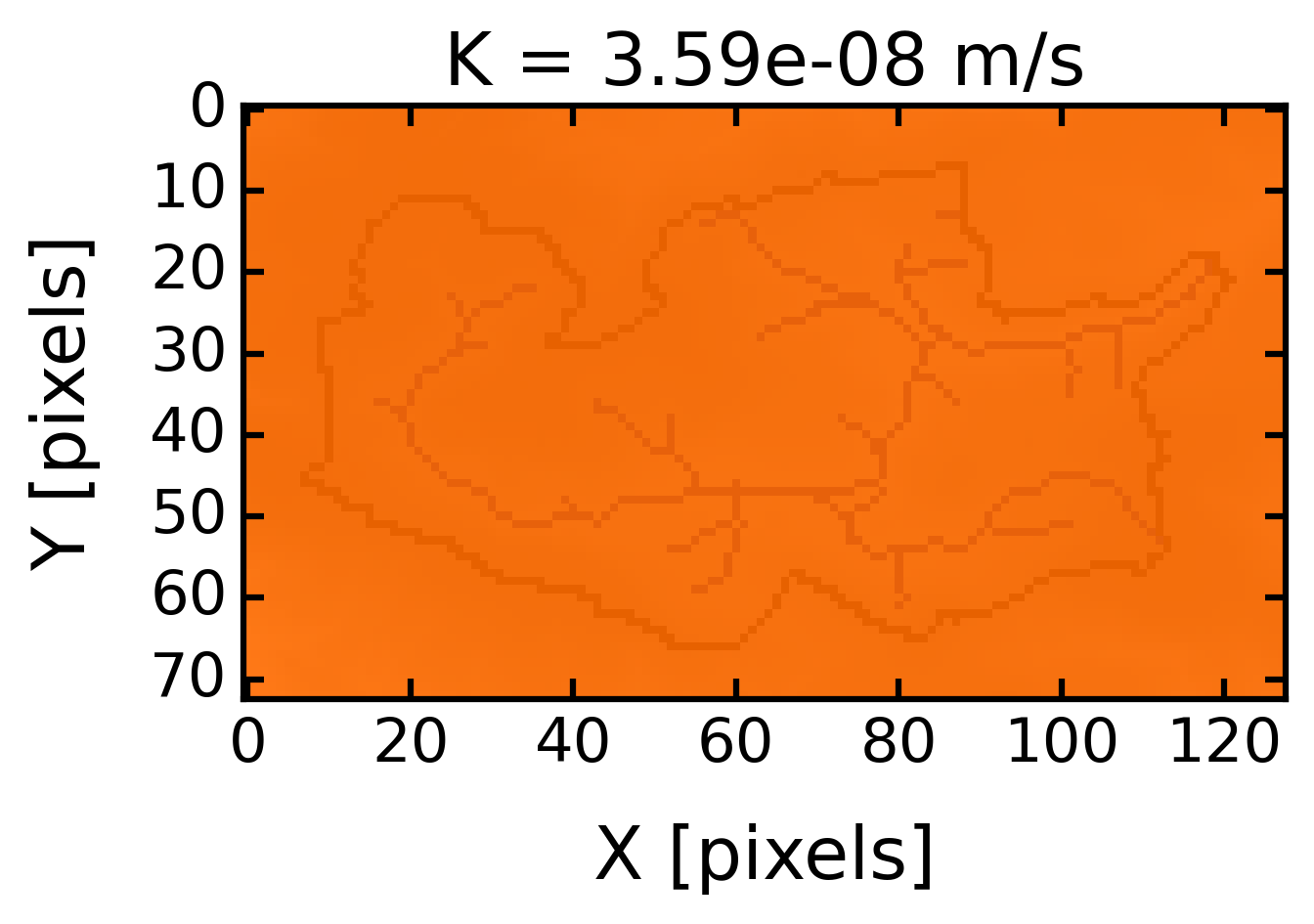

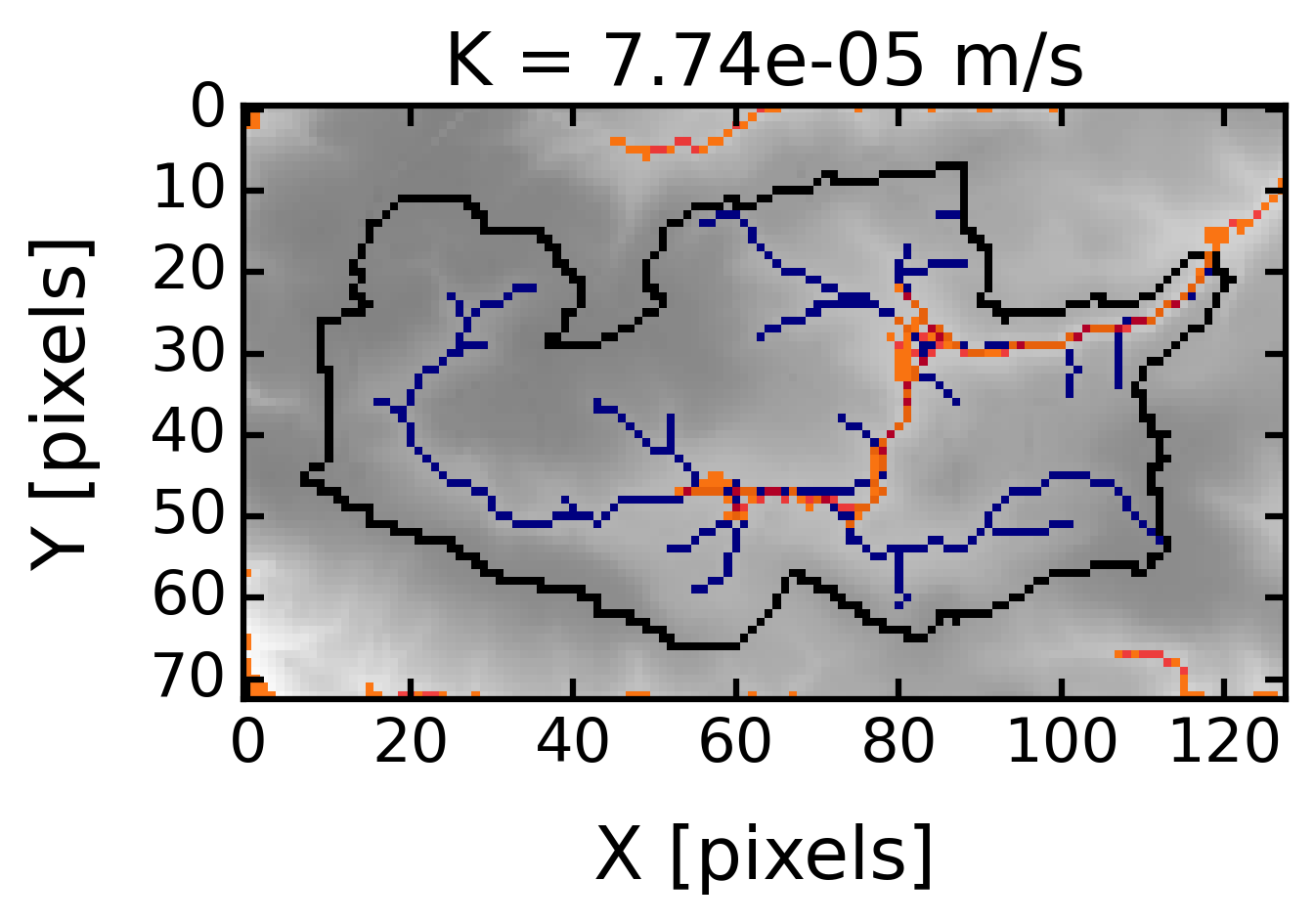

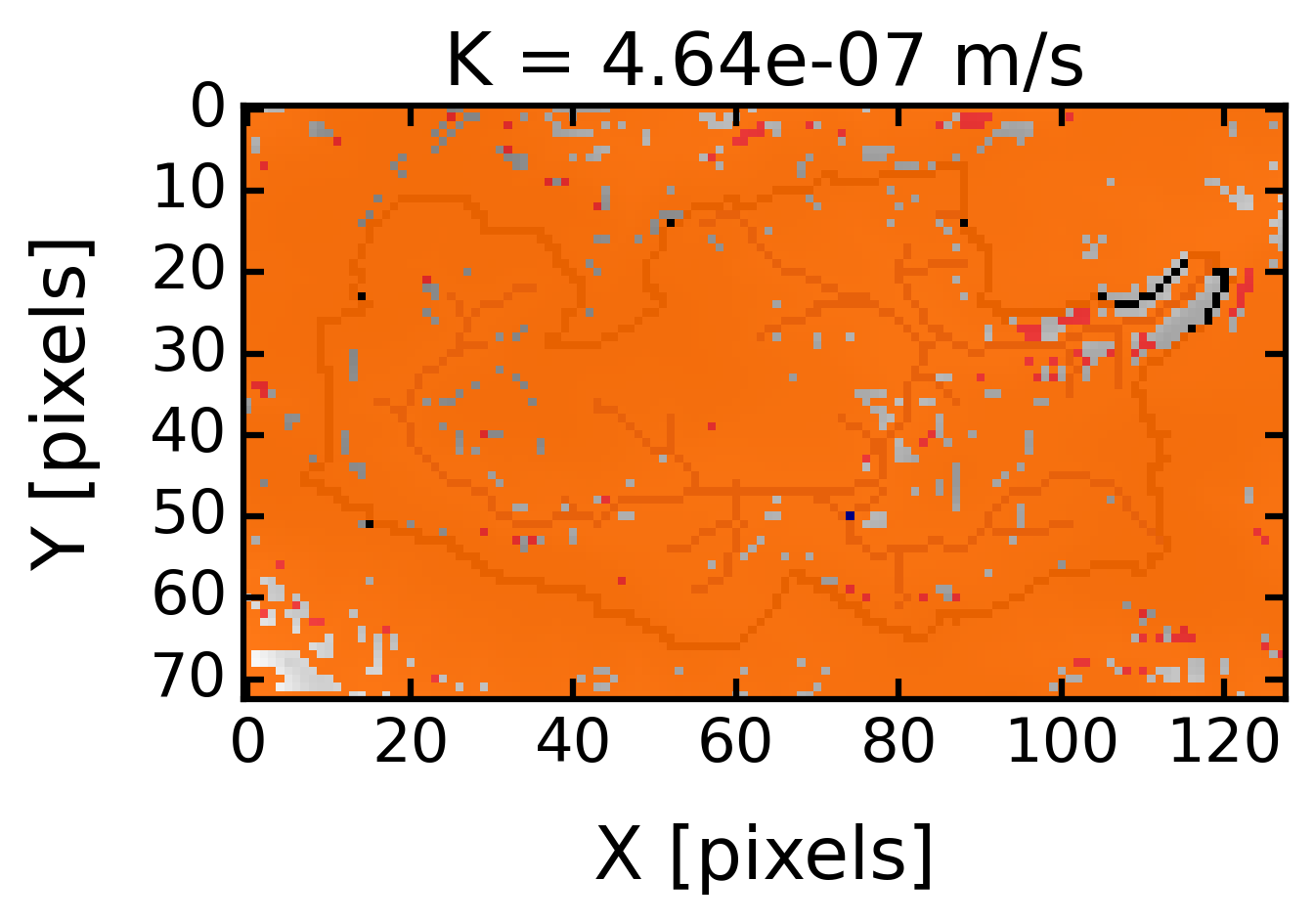

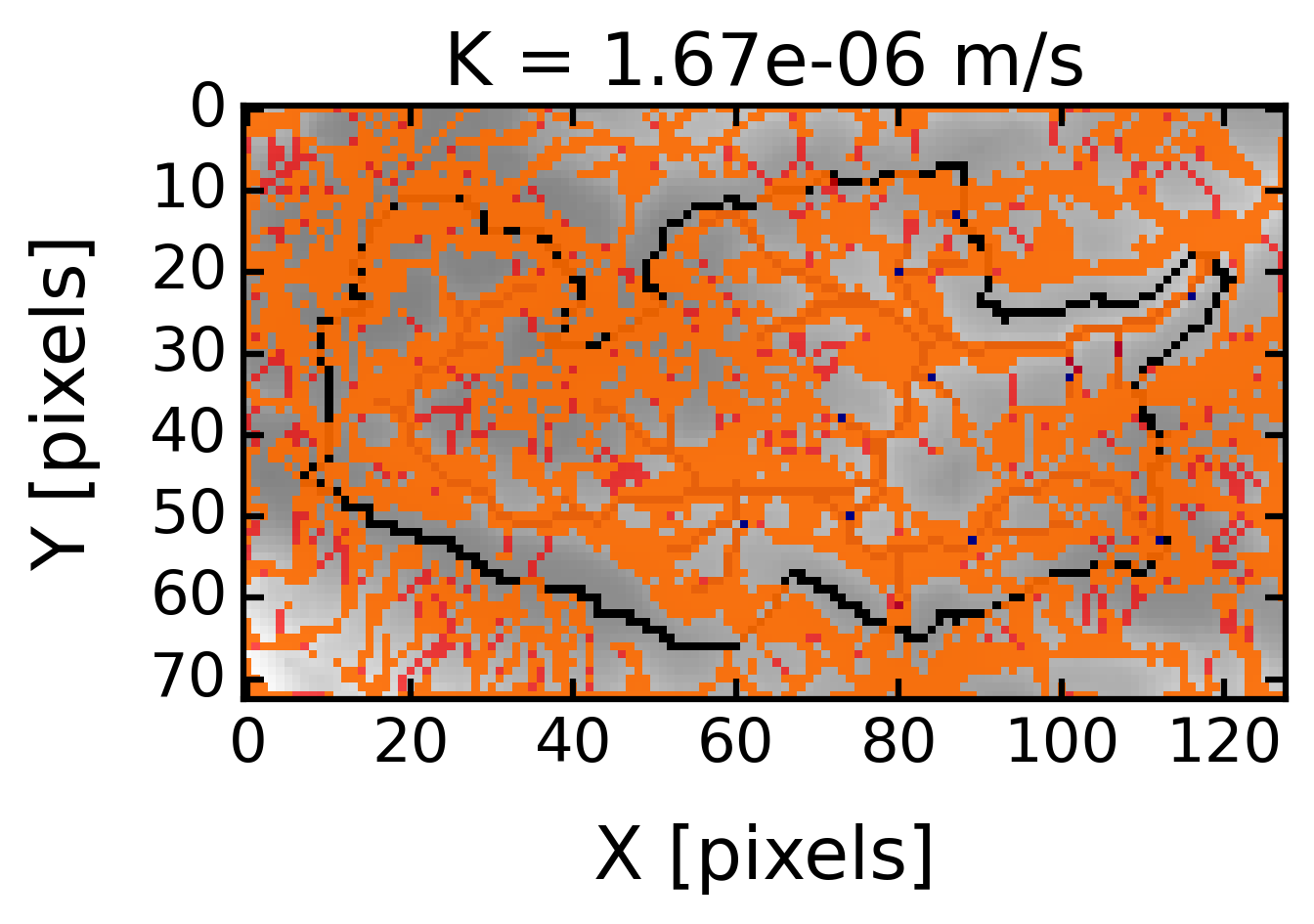

im_dem = ax.imshow(dem_data, alpha=0.5, cmap='Greys')
im_cont = ax.imshow(contour, alpha=1, cmap=mpl.colors.ListedColormap('k'))
im_obs = ax.imshow(obs_river_data, alpha=1, cmap=mpl.colors.ListedColormap('navy'))
im_sim = ax.imshow(sim_river_data, cmap=mpl.colors.ListedColormap('red'), alpha=0.7)
im_seep = ax.imshow(seep_river_data, cmap=mpl.colors.ListedColormap('darkorange'), alpha=0.7)
ax.set_xlabel('X [pixels]')
ax.set_ylabel('Y [pixels]')
ax.set_title('K = '+'{:.2e}'.format(model_modflow.hk.mean()/24/3600)+' m/s')
compt += 1
fig.tight_layout()
# fig.savefig(os.path.join(model_modflow.figure_file,
# 'MAP_'+model_name+'_'+str(compt)+'.png'),
# bbox_inches='tight')
# fig.savefig(os.path.join(model_modflow.save_fig,
# 'MAP_'+model_name+'_'+str(compt)+'.png'),
# bbox_inches='tight')
[ ]:
fig, ax = plt.subplots(1, 1, figsize=(5,4), dpi=300)
for model_name, success_modflow, model_modflow in zip(list_model_name,
list_success_modflow,
list_model_modflow):
simulations_folder = os.path.join(out_path, watershed_name,
'results_simulations')
simul_csv = pd.read_csv(os.path.join(simulations_folder, model_name,
r'_postprocess/_timeseries/', '_simulated_timeseries.csv'),
sep=';')
ax.plot(model_modflow.hk.mean()/24/3600,
simul_csv['seepage_areas'],
marker='o', ms=8, lw=0, color='k')
ax.set_xscale('log')
ax.set_xlabel('K [m/s]')
ax.set_ylabel('Drainage density [%]')
# fig.tight_layout()
# fig.savefig(os.path.join(model_modflow.save_fig,
# 'GRAPH_sat_'+iD_set_simulations+'.png'),
# bbox_inches='tight')
[17]:
os.chdir(root_dir)
